SQTT Instrumentation for AMDGPU

Insert s_ttracedata markers into HIP device code for SQTT/ATT tracing. Two modes: manual user markers and automatic instrumentation via an LLVM pass plugin. Zero runtime cost when disabled.

Prerequisites

• ROCm 7.13 or
• Rocprofiler-sdk built from develop.

Building the pass plugin

cmake -B build -DCMAKE_PREFIX_PATH=/opt/rocm
cmake --build build

This produces build/lib/libsqttinstrumentpass.so.

Use CMAKE_PREFIX_PATH to select a specific ROCm installation:

cmake -B build-rocm713 -DCMAKE_PREFIX_PATH=/opt/rocm-7.13.0
cmake --build build-rocm713

Quick start

User markers only

Add markers to your HIP code and compile with -DSQTT_ENABLED=1:

#include "markers.hpp"

__global__ void my_kernel(float *data, int n) {
    int idx = blockIdx.x * blockDim.x + threadIdx.x;
    if (idx >= n) return;

    sqtt_marker_enter("work");
    data[idx] = do_work(data[idx]);
    sqtt_marker_data("work_value", static_cast<uint32_t>(idx));
    sqtt_marker_exit("work");
}

hipcc -DSQTT_ENABLED=1 -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Without -DSQTT_ENABLED=1 (or with -DSQTT_ENABLED=0), all marker calls compile to nothing. You can leave them in production code permanently.

sqtt_marker_data(name, value) emits a named point marker followed by one raw 32-bit payload record. The funcmap annotates that marker with R:ID:extra_payload_count=1 so decoders treat the next shaderdata record as payload, not as a separate marker header.

User markers with scope filtering

The pass wraps every s_ttracedata call with a scope check so that only waves on matching CUs/SIMDs/WGs emit markers:

# Only CU 0, SIMD 0, all workgroups
SQTT_SCOPE_CU=0x1 SQTT_SCOPE_SIMD=0x1 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

By default the pass limits markers to CU 0-1 (SQTT_SCOPE_CU=0x3).

Automatic function instrumentation

Automatically insert entry/exit markers into device functions that exceed a size threshold. Kernels (__global__) are not instrumented because SQTT already generates wave start/end markers for them.

SQTT_INSTRUMENT_FUNCTIONS=10 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Use weighted cost instead of instruction count:

SQTT_INSTRUMENT_FUNCTIONS=cost:50 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Automatic barrier instrumentation

Insert point markers around standalone s_barrier, s_barrier_signal, and s_barrier_wait:

SQTT_INSTRUMENT_BARRIERS=1 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Automatic memory operation markers

Insert point markers around groups of global/buffer/flat memory operations (LDS and private/scratch are excluded):

SQTT_INSTRUMENT_MEMORY=2:5 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Format: N:M where N = number of memory ops per marker, M = max instruction gap between ops in the same sequence. 2:5 means "emit one marker per 2 ops, sequence breaks if gap > 5 instructions." With N=1, every memory op gets its own marker. Separate IDs are used for loads (vmem_load) and stores (vmem_store). Loads and stores are never mixed in the same group — a load/store transition always splits the sequence.

Memory address tracing

Dump per-lane virtual addresses for every memory operation into the trace stream. Each memory op gets a unique marker ID with source location, enabling cache line utilization analysis, stride detection, and coalescing analysis:

SQTT_TRACE_ADDRESSES=memory \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Trace LDS addresses only:

SQTT_TRACE_ADDRESSES=lds \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Trace both global and LDS:

SQTT_TRACE_ADDRESSES=memory,lds \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

SQTT_TRACE_ADDRESSES and SQTT_INSTRUMENT_MEMORY are mutually exclusive. Address tracing emits a header marker for every op, making SQTT_INSTRUMENT_MEMORY redundant.

Analyze address traces after capture:

rocprofv3 --att -d trace_output -- ./my_app
python3 scripts/sqtt_memory_trace.py trace_output/ -o addresses.json
python3 scripts/sqtt_memory_trace.py trace_output/ --summary

The trace protocol emits a header marker, the EXEC mask, and then per-lane addresses for all lanes. When at least one qualifying operation is traced, the funcmap records the wave size as W:64 or W:32, and address-trace header IDs get R:ID:extra_payload_count=N metadata for the number of following payload records. Markers without an R: row have an implicit count of zero. The decoder filters by the EXEC mask to report only active lanes. The parser demultiplexes interleaved records from concurrent waves by grouping on (cu, simd, wave_id) before parsing each wave's address block.

Any marker with extra_payload_count > 0, including address blocks and sqtt_marker_data(), requires SQTT_SHADER_CLOCK_BITS=0. Shader-clock packing is disabled by default; an explicit nonzero setting is an error.

Everything together

All options compose. User markers, auto-function, auto-barrier, memory ops, and scope filtering work simultaneously:

SQTT_INSTRUMENT_FUNCTIONS=cost:50 \
SQTT_INSTRUMENT_BARRIERS=1 \
SQTT_INSTRUMENT_MEMORY=2:5 \
SQTT_SCOPE_CU=0x1 \
SQTT_SCOPE_SIMD=0x1 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ my_kernel.hip -o my_kernel

Marker API

// Named markers (requires pass plugin, auto-assigned IDs, deduplication)
sqtt_marker_enter("my_scope");      // push scope
sqtt_marker_exit("my_scope");       // pop scope
sqtt_marker_point("checkpoint");    // point event (no push/pop)

// Numeric markers (sched_barrier(0) on each side; pass plugin adds the
// SQTT_MEM_BARRIER-controlled boundary on top)
sqtt_marker_enter(uint32_t id);     // push scope
sqtt_marker_exit(uint32_t id);      // pop scope
sqtt_marker_point(uint32_t id);     // point event

Named markers (recommended)

Use string-based markers for readable trace output with automatic ID management:

#include "markers.hpp"

__global__ void my_kernel(float *data, int n) {
    int idx = blockIdx.x * blockDim.x + threadIdx.x;
    if (idx >= n) return;

    sqtt_marker_enter("load_phase");
    float val = data[idx];
    sqtt_marker_exit("load_phase");

    sqtt_marker_enter("compute_phase");
    val = val * val + 1.0f;
    sqtt_marker_exit("compute_phase");

    sqtt_marker_point("store_begin");
    data[idx] = val;
}

Named markers require the pass plugin (-fpass-plugin=build/lib/libsqttinstrumentpass.so). The pass:

1. Finds all sqtt_marker_enter("..."), sqtt_marker_exit("..."), sqtt_marker_point("..."), and sqtt_marker_data("...", value) calls
2. Assigns unique IDs (starting at 1) with deduplication within the same scope/point/data marker kind
3. Fuses adjacent exit+enter pairs into single s_ttracedata instructions with exit_prev=true, halving the overhead for scope transitions
4. Replaces each call with s_ttracedata + scope checks
5. Records U:ID:name entries in the .sqtt_funcmap section

If you forget to load the pass plugin, you get a linker error ("undefined reference to __sqtt_named_marker_enter") -- no silent miscompilation.

When SQTT_ENABLED=0 (the default), all markers compile to nothing.

Numeric markers

For cases where you don't need the pass plugin, use numeric IDs directly. The header shifts the ID into bits [31:2] and sets the appropriate flags. Exit markers always emit EXIT_PREV (value 1) regardless of the ID passed.

Scope control and environment variables

All variables are read at compile time. They configure the pass plugin or the preprocessor, not runtime behavior.

Master switch (preprocessor define)

Variable	Values	Default	Description
SQTT_ENABLED	0, 1	0	Pass as -DSQTT_ENABLED=1 to hipcc. When 0, all user marker calls compile to nothing.

Scope control plugin options (environment variables)

Set these as env vars before the hipcc command. The pass plugin reads them directly via getenv().

Variable	Format	Default	Description
SQTT_SCOPE_WAVE	hex bitmask or -1	-1 (all)	Which waves emit markers. Wave 0-31, bits [31:0].
SQTT_SCOPE_SIMD	hex bitmask or -1	0xF (all 4)	Which SIMDs emit markers. 4 SIMDs, bits [3:0].
SQTT_SCOPE_CU	hex bitmask or -1	0x3 (CU 0-1)	Which CUs emit markers. Bit N = CU N.
SQTT_SCOPE_WG	hex bitmask or -1	-1 (all)	Which workgroups emit markers. WG 0-31, bits [31:0].
SQTT_INSTRUMENT_FUNCTIONS	N or cost:N	off	Instrument device functions exceeding threshold. 20 = instruction count > 20. cost:100 = weighted cost > 100.
SQTT_INSTRUMENT_BARRIERS	0, 1	0	Instrument barriers. Consecutive signal+wait pairs fuse to a single marker.
SQTT_INSTRUMENT_MEMORY	N:M	off	Instrument memory ops. N = ops per marker, M = max gap. 2:5 = 1 marker per 2 ops, sequence breaks at gap > 5. Covers global, buffer, flat (not LDS/scratch).
SQTT_TRACE_ADDRESSES	memory, lds, or both	off	Trace per-lane virtual addresses. Mutually exclusive with SQTT_INSTRUMENT_MEMORY. memory = flat/global (AS=0/1) and buffer, lds = LDS (AS=3). Expensive.
SQTT_MEM_BARRIER	none / asm / fence (or 0 / 1 / 2)	fence	Reordering boundary planted around every marker. fence (default) emits fence syncscope("workgroup") acq_rel tagged with AMDGPU local/LDS synchronization metadata, anchoring markers against optimizer and scheduler movement without marker-generated global cache invalidation. asm plants an empty ~{memory} inline asm (IR/MIR-only constraint, no machine code). none disables both. Default favors marker accuracy; opt down for tight kernels.
SQTT_SHADER_CLOCK_BITS	unsigned integer	0	Number of gfx12 marker header high bits reserved for shader clock. Set a nonzero value to enable packing; it is invalid with any payload-bearing marker.
SQTT_SHADER_CLOCK_SHIFT	unsigned integer	4	Source bit offset in the shader-clock low word for the packed field.

Examples

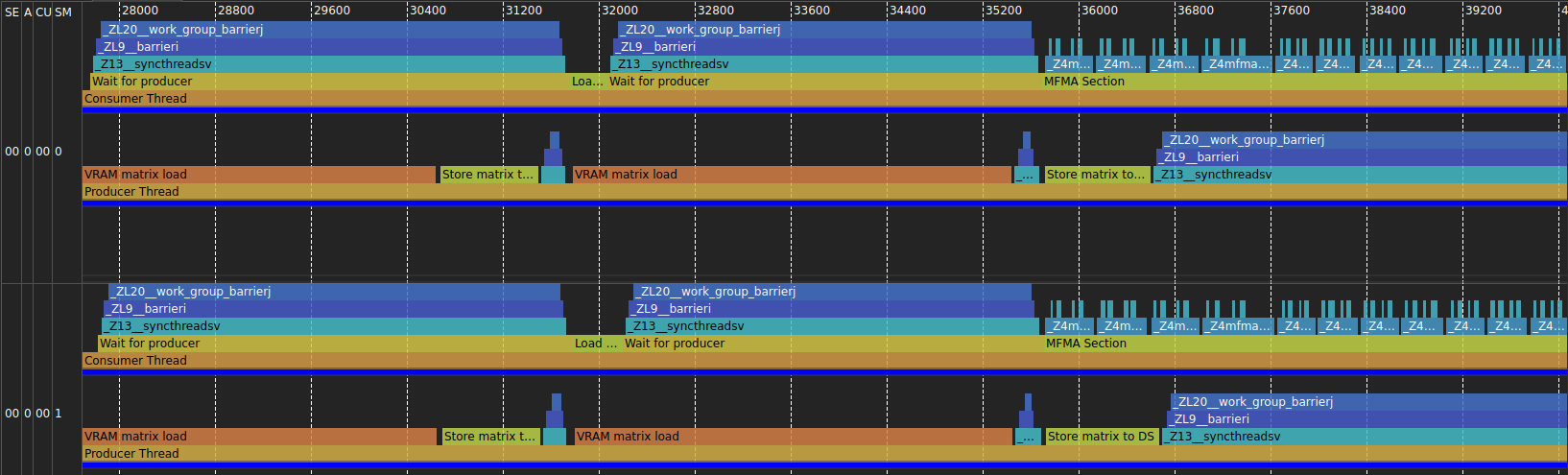

Shader wave trace as seen with auto instrumentation and user markers together

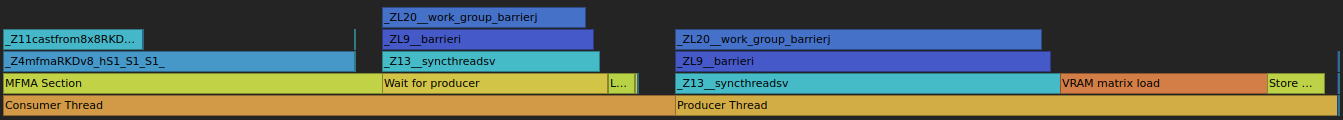

Coarse Flamegraph derived from the previous trace without instruction tracing

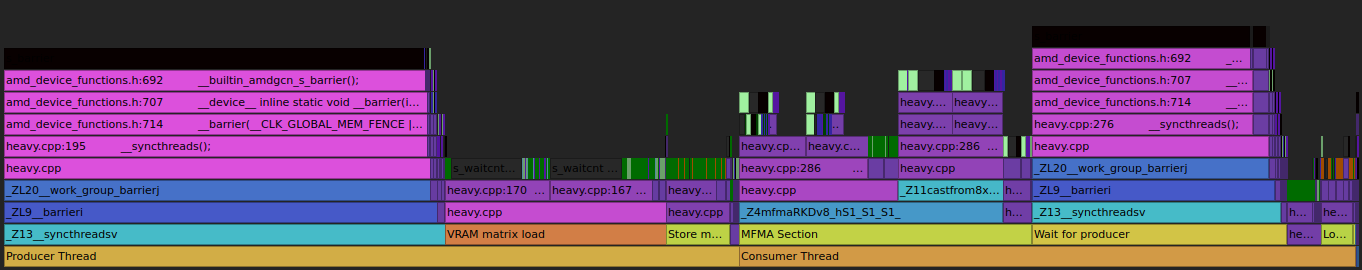

Fine Flamegraph derived from the previous trace with instruction tracing

User markers (test/markers/kernels/heavy.cpp)

The kernel in heavy.cpp uses named markers to annotate producer/consumer threads and individual phases (memory loads, LDS stores, MFMA compute). Here is the consumer thread's inner loop, showing how markers bracket each phase:

sqtt_marker_enter("Consumer Thread");

// ...

for (int k1=0; k1 < KDIM; k1 += 2*SHMBLOCK)
{
    // ...
    for (int k2=0; k2 < 2*SHMBLOCK; k2 += SHMBLOCK)
    {
        sqtt_marker_enter("Wait for producer");
        __syncthreads();
        sqtt_marker_exit("Wait for producer");

        sqtt_marker_enter("Load matrix from DS");
        // ... load from shared memory into registers ...
        sqtt_marker_exit("Load matrix from DS");

        sqtt_marker_enter("MFMA Section");
        for (int n=0; n<HEIGHT; n++) for (int r1=0; r1<WIDTH; r1++)
        {
            Vec4 res = mfma(a0_load[r1], a1_load[r1], b0_load[n], b1_load[n]);
            for (int m=0; m<4; m++) reg_res[r1][m*HEIGHT + n] += scal[r1][m] * res[m];
        }
        sqtt_marker_exit("MFMA Section");
    }
}

sqtt_marker_exit("Consumer Thread");

Build with the pass plugin and capture a trace:

hipcc -DSQTT_ENABLED=1 -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ test/markers/kernels/heavy.cpp -o heavy

rocprofv3 --att -d trace -- ./heavy

Automatic function instrumentation

The auto.cpp test contains a kernel calling device functions of varying size. Functions exceeding the threshold are automatically instrumented with entry/exit markers -- no source changes needed:

__device__ float add_one(float x)
{
    asm volatile("v_add_f32 %0, %1, 1" : "=v"(x) : "v"(x));
    // ...
    return x;
}

__device__ float heavy_compute(int iters, float* out)
{
    float result = out[threadIdx.x];
    for (int i = 0; i < iters; i++) {
        result = add_one(result);
        result = result / (result + 1.0f);
        // ...
    }
    return result;
}

__global__ void compute_kernel(float *out, const float *in, int size, int iters) {
    // ...
    float val = heavy_compute(iters, shm);
    out[idx] = add_one(val);
}

Build with automatic function instrumentation and capture a trace:

SQTT_INSTRUMENT_FUNCTIONS=10 \
hipcc -DSQTT_ENABLED=1 -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ test/markers/kernels/auto.cpp -o auto

rocprofv3 --att -d trace -- ./auto

Decoding the function map

Auto-instrumented binaries contain a .sqtt_funcmap section mapping IDs to function names. Extract it from the code object:

# Extract code object from the binary
llvm-objdump --offloading my_kernel

# Decode the function map (resolves ELF vaddrs)
python3 scripts/sqtt_decode_funcmap.py my_kernel.0.hipv4-amdgcn-amd-amdhsa--gfx942

# With demangled names
python3 scripts/sqtt_decode_funcmap.py my_kernel.0.hipv4-amdgcn-amd-amdhsa--gfx942 --demangle

Example output:

  Type        ID     Extra               Vaddr  Name
  ----       ---     -----               -----  ----
kernel         -         0  0x0000000000001900  my_kernel(float*, int)
  user         1         0                   -  load_phase
  user         2         0                   -  compute_phase
  func         3         0  0x0000000000001000  do_work(float)
 point         4         0                   -  barrier_signal
 point         5         0                   -  barrier_wait
 point         6         0                   -  barrier

With address tracing, the funcmap also contains per-op entries with source locations and a wave size entry:

  wave_size: 64
 point         1       130                   -  addr_trace_load@my_kernel.hip:10
 point         2       130                   -  addr_trace_store@my_kernel.hip:12

Weighted cost model

When using SQTT_INSTRUMENT_FUNCTIONS=cost:N, instructions are weighted:

Weight	Instructions
0	phi, alloca, debug intrinsics, lifetime markers, unreachable
1	Arithmetic, comparisons, branches, conversions
4	LDS loads/stores, ds_* intrinsics
10	Global/flat memory loads and stores
16	mfma_* / wmma_* matrix operations

ID encoding

Marker values are packed into 2 flag bits so that small IDs can use the faster s_ttracedata_imm instruction (8-bit immediate, gfx10+) when shader-clock packing is inactive. Larger IDs fall back to s_ttracedata (32-bit m0, all targets).

For full M0-based traces, the pass explicitly emits s_mov_b32 m0, s_nop 0, then s_ttracedata on every target. Address EXEC tracing uses the same sequence.

Both instructions share the same bit layout:

  Bit  0:      exit previous scope (pop top)
  Bit  1:      enter scope (push)
  Bits [7:2]:  6-bit ID   (s_ttracedata_imm, IDs 0-63)
  Bits [31:2]: 30-bit ID  (s_ttracedata, IDs 0-1G)

Decoding (works for both):
  exit_prev = val & 1
  is_enter  = (val >> 1) & 1
  id        = val >> 2

The pass plugin automatically selects s_ttracedata_imm when the encoded value fits in 8 bits, the target supports it, and shader-clock packing is inactive. IDs 1-63 use the fast path on RDNA. Exit markers use the same selection rule.

On gfx1200, gfx1201, and gfx1250, a nonzero SQTT_SHADER_CLOCK_BITS enables clock packing. With the usual 12-bit setting, it occupies marker bits 31-20 and leaves 18 marker ID bits plus the two low flags. gfx1250 uses s_get_shader_cycles_u64; gfx1200 and gfx1201 use s_getreg_b32 hwreg(HW_REG_SHADER_CYCLES_LO, 4, 12). Configure this with SQTT_SHADER_CLOCK_BITS and SQTT_SHADER_CLOCK_SHIFT; it defaults to 0, which uses the no-clock full-ID layout. The funcmap emits M:shader_clock_bits=N;shader_clock_shift=S whenever clock packing is active. Clock packing cannot be combined with any marker that has an R: payload row. Numeric point and enter markers keep their legacy values; bare exits use the packed form because their value is indistinguishable from a generated exit.

The packed clock is a truncated sample at instruction issue. Shaderdata and shader clocks have an unknown fixed phase per physical SIMD, so att_tool.py cancels it by comparing clock/time deltas to an arbitrary header in the same SIMD/layout. It takes the minimum from the complete domain and applies the relative correction retroactively. Apply this only to headers, never R: payloads. Funcmap::marker_encoding exposes marker_id_mask(), packed_shader_clock_mask(), and shader_clock_source_mask(); without M: metadata those describe the legacy full-width ID layout.

att_tool.py applies that correction by default and masks each recognized header to its ordinary legacy-form marker value for existing viewers. Use --no-decode-markers to preserve packed values and arrival timestamps. For externally packed payload blocks it may normalize a recognized header, but does not apply timestamp correction.

For packed code objects, att_tool.py adds six-column sqtt_funcmap rows and packed-layout/payload tables to code.json. Readers that do not know them continue using the original JSON; legacy code.json output is unchanged.

The marker type (function, user, barrier, memory) is determined by looking up the ID in the .sqtt_funcmap section, not from encoding bits.

Semantics:

enter	exit_prev	id	meaning
0	1	0	exit (pop top scope)
0	0	0	no-op (reserved)
0	0	any	point marker (no scope change)
1	0	any	enter scope (push)
1	1	any	exit previous + enter this ID (transition)

IDs are allocated dynamically from a unified pool. No reserved ranges. When early function instrumentation runs, its function and already-resolved named-marker IDs are compacted together by emission count (ties by original ID). System IDs follow, while late-resolved named markers and address IDs receive the next available IDs as they are encountered:

  1-N         early functions and named markers, compacted together
  N+1..       barrier and vmem IDs (when enabled)
  ...         late-resolved named and addr_trace_* IDs as encountered

When address tracing is enabled, each memory operation gets its own unique marker ID. The funcmap records P:ID:addr_trace_load@file.hip:42 with source location for correlation.

Verifying instrumentation

Check that markers appear in the IR:

SQTT_INSTRUMENT_FUNCTIONS=5 \
hipcc -DSQTT_ENABLED=1 \
      -fpass-plugin=build/lib/libsqttinstrumentpass.so \
      -I include/rocprof_trace_decoder/cxx/ -S -emit-llvm my_kernel.hip -o - \
      | grep ttracedata

Check that disabled builds have no markers:

hipcc -I include/rocprof_trace_decoder/cxx/ -S -emit-llvm my_kernel.hip -o - | grep ttracedata
# (should produce no output)
