Multi-Backend Launcher (perfxpert-code <backend>)

perfxpert-code is multi-backend. Plain perfxpert-code launches the patched opencode path: packaged installs prefer the bundled AMD-branded binary, while source/editable checkouts prefer a locally built patched binary from the pinned opencode submodule. In addition, each supported backend has a subcommand that registers the perfxpert-mcp server in the backend's native config, stages an AGENTS.md-equivalent rendered prompt, installs a pre-tool-call gate hook, and then execs the backend's native TUI with perfxpert-mcp already attached.

This guide covers the user-visible surface. For the architectural contract every adapter satisfies, see ../architecture/backend-adapter.md. For the underlying MCP server (56 READ_ONLY tools — 8 agent-hierarchy entry points + 47 classifier/knowledge tools + 1 trace_diff.diff_runs), see ../integration/mcp-server.md. The rationale for the Claude PreToolUse choice is captured in the local Claude hook-surface decision record; the (different) decision for Codex is captured in the local Codex hook-surface decision record.

Backend LLM freely picks tools. There is no forced-call contract between perfxpert_intent_classify and any aggregator tool. The backend LLM reads the agent hierarchy as reference in AGENTS.md and calls whichever of the 56 MCP tools match the user's intent — it may invoke any agent-hierarchy tool (perfxpert_agent_root, perfxpert_agent_analysis, perfxpert_agent_diff_specialist, etc.) directly, or compose lower-level classifier tools (bottleneck_*, regression_*, …) when it already knows the answer shape. The tool-priority gate still requires intent_classify as the first call, but nothing after that is mechanically forced.

Why multi-backend?

Users arrive with a backend already chosen — Claude Code, Gemini CLI, Codex CLI, or no preference. Forcing everyone through the bundled opencode blocked adoption for Claude Code / Gemini users who had already invested in their native TUI, muscle memory, and auth. The multi-backend launcher lets perfxpert-code <backend> write the correct MCP registration + gate hook + prompt cache for whichever backend the user chose, then exec the native binary — the perfxpert tool discipline travels with the install, not the TUI.

The patched opencode path remains the recommended default. In wheels it ships bundled; in source checkouts it can be rebuilt from the pinned submodule. That path carries the STRICT-TOOL-DISCIPLINE stanza and the fork-only opencode gate hook without any extra backend install.

Backend comparison

Backend	Subcommand	LLM	Config location	Scope	Gate hook	MCP tool prefix
opencode (default patched path)	perfxpert-code	Any (via opencode provider)	~/.cache/perfxpert/opencode/opencode.json	Per-bundle / per-checkout	Patched system prompt + fork patches 0010, 0020	perfxpert_*
Claude Code	perfxpert-code claude	Anthropic Claude	./.mcp.json + ./CLAUDE.local.md + ./.claude/settings.json	Project	Native PreToolUse hook (event-based lift)	mcp__perfxpert__*
Gemini CLI	perfxpert-code gemini	Google Gemini	./.gemini/settings.json + ./.perfxpert/AGENTS.md	Project	Native BeforeTool / AfterTool hooks (event-based lift)	mcp_perfxpert_*
Codex CLI	perfxpert-code codex	OpenAI	~/.codex/config.toml (trust) + ./.codex/config.toml when trusted or fallback ~/.codex/config.toml for MCP + ./AGENTS.override.md	Trust in user config; MCP project-local when trusted	Prompt-layer-only (Codex PreToolUse is Bash-only — see decision record)	mcp__perfxpert__*

Consent is requested once per (backend, cwd-hash, file-set-hash) tuple and persisted — re-running the same subcommand in the same directory is silent. Changing the file set (e.g. adding --allow-agents-md-append) re-prompts because the hash changes.

Install recipes

Default: patched opencode path

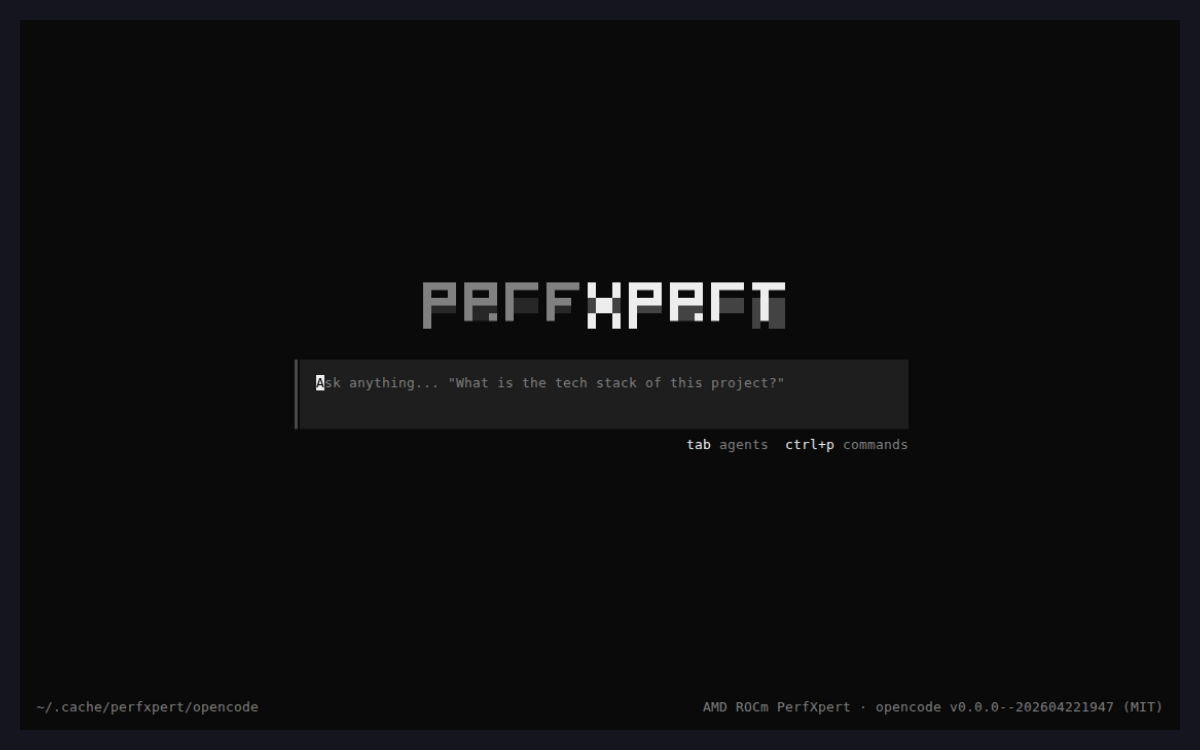

perfxpert-code on the default patched path, with the interactive TUI and MCP wiring ready to go.

No subcommand, no extra backend install. In packaged installs the launcher uses the bundled AMD-branded patched binary. In source/editable checkouts it prefers a locally built patched binary from experimental/python/perfxpert/opencode. Only when neither patched copy exists does it fall back to an upstream opencode on disk, with a warning and without the fork-only gate behavior.

# SKIP-SAMPLE — requires a patched opencode path (repo-local build or bundled wheel)
perfxpert-code

Claude Code (perfxpert-code claude)

Registers perfxpert in the project .mcp.json, stages the rendered prompt at .perfxpert/AGENTS.md, writes a pointer at CLAUDE.local.md (at the project root), and installs the native PreToolUse hook inside .claude/settings.json.

Claude Code support is implemented in-tree and covered by the backend adapter plus dispatcher tests.

# SKIP-SAMPLE — requires claude CLI ≥ 2.1.59 on PATH
perfxpert-code claude

# Equivalent explicit form (showing the MCP registration step):
claude mcp add perfxpert --scope project -- perfxpert-mcp

If your project already tracks CLAUDE.local.md (common for teams), the adapter writes a pointer by default and leaves your tracked file alone. To append the rendered prompt into your tracked file instead, pass --allow-agents-md-append (re-prompts consent because the file set changes):

# SKIP-SAMPLE — opt-in for appending to a tracked CLAUDE.md
perfxpert-code claude --allow-agents-md-append

Gemini CLI (perfxpert-code gemini)

List-appends the staged prompt cache to context.fileName in the project-local .gemini/settings.json (preserving any project entries), registers perfxpert under mcpServers, and installs native BeforeTool / AfterTool Gemini hooks in the same project settings. The adapter never touches the user's GEMINI.md — list-append in context.fileName is the supported extension point.

Gemini support is implemented in-tree and covered by the backend adapter plus dispatcher tests.

# SKIP-SAMPLE — requires gemini CLI ≥ 0.2.0 on PATH
perfxpert-code gemini

Codex CLI (perfxpert-code codex)

Marks the current project as trusted via the [projects."<abs-cwd>"] table in ~/.codex/config.toml (required — Codex refuses to run agents in untrusted projects), registers perfxpert under [mcp_servers.perfxpert] in <cwd>/.codex/config.toml for trusted projects or falls back to ~/.codex/config.toml when project scope is unavailable, and writes a perfxpert-managed <cwd>/AGENTS.override.md compatibility override so Codex actually loads the rendered prompt. Writes preserve comments + key ordering via lazy-imported tomlkit.

Codex support is implemented in-tree and covered by the backend adapter plus dispatcher tests.

# SKIP-SAMPLE — requires codex CLI ≥ 0.7.0 on PATH
perfxpert-code codex

# Equivalent explicit form (showing the MCP registration step Codex does natively):
codex mcp add perfxpert -- perfxpert-mcp

Trust gate

Codex requires [projects."<abs-path>"].trust_level = "trusted" in ~/.codex/config.toml before it will run agents in a given project directory. The adapter handles this for you: if the cwd is not yet trusted, it prompts [y/N] (interactive) or aborts with TrustRequired (non-interactive). To auto-trust during bootstrap or CI, set PERFXPERT_AUTO_TRUST=1:

# SKIP-SAMPLE — bootstrap path: auto-trust the cwd without prompting
PERFXPERT_AUTO_TRUST=1 perfxpert-code codex

Security caveat. When PERFXPERT_AUTO_TRUST=1 is honored, the adapter prints a [WARN] line to stderr naming the trusted cwd — and that warning bypasses --quiet. This is intentional: silently marking a directory as trusted is a security-relevant action and deserves an audit trail even in non-interactive runs. If you need completely silent installs and your cwd is already trusted from a previous run, the warning never fires.

Prompt-layer-only gate (why Codex differs)

Unlike Claude (PreToolUse) and Gemini (BeforeTool / AfterTool), the Codex adapter does not install a server-side pre-tool-call gate hook. Codex's native PreToolUse hook exists (behind [features] codex_hooks = true) but currently intercepts Bash only — it cannot block MCP, Write, or other tool calls. The perfxpert gate must intercept every non-PerfXpert-prefixed tool call until intent_classify returns, so a Bash-only hook cannot satisfy the contract. Installing one anyway would give false confidence.

Instead, the Codex install relies on the rejection-language stanza embedded in a perfxpert-managed AGENTS.override.md (prompt-layer enforcement). When the repo already has a root AGENTS.md, the adapter shadow-copies that file into the override and appends a perfxpert-managed block so Codex sees both the repo guidance and the perfxpert gate. AGENTS.override.md is a compatibility file owned by the adapter, not a native Codex-only source of truth. Codex can defer MCP tool metadata out of the initial model-visible tool inventory when the session is crowded. In that case, the generated Codex prompt allows exactly one pre-gate exception: use Codex's metadata search tool (tool_search / tool_search_tool) to expose the PerfXpert intent_classify and workflow_next_step MCP tools, then call the gate immediately. If discovery does not expose the gate, the agent must still stop with a PerfXpert configuration error instead of using shell, SSH, build, edit, or profiling commands as a fallback. Smaller models may bypass advisory language; if mechanical enforcement matters for your workflow, use perfxpert-code claude or the bundled opencode default (both have server-side mechanical gates). The full rationale + re-visit conditions are captured in the local Codex hook-surface decision record.

Git-tracked config refused

Same rule as Claude / opencode: if ~/.codex/config.toml is tracked inside a git repo (unusual but possible in dotfile repos), the adapter refuses to write and raises ConfigClobber with a git rm --cached ~/.codex/config.toml remediation hint. Malformed TOML is surfaced the same way — ConfigClobber("...not valid TOML...Fix the syntax error...") rather than a raw tomlkit traceback. During uninstall, a malformed file is recorded as skipped_due_to_drift so you can clean the other backends and come back to the broken file.

Uninstall recipes

perfxpert-code uninstall <backend> reverses the install. Marker-block drift (content hand-edited inside a perfxpert-managed block) is detected and the file is left untouched — the command reports the skipped paths and exits non-zero.

# SKIP-SAMPLE — reverses a Claude install under the current cwd
perfxpert-code uninstall claude

# SKIP-SAMPLE — reverses a Gemini install
perfxpert-code uninstall gemini

# SKIP-SAMPLE — reverses a Codex install (drops MCP table + trust entry + staged AGENTS.override.md)
perfxpert-code uninstall codex

# SKIP-SAMPLE — non-interactive: consent the uninstall in advance
perfxpert-code uninstall --yes claude

On a successful uninstall, all of the following are reverted: MCP registration entry, any discovered prompt file or managed prompt block the adapter wrote, any pointer file the adapter wrote, and the gate-hook settings block. Files the user created (e.g. a pre-existing CLAUDE.local.md) are preserved. For Codex specifically, the [projects."<cwd>"] trust entry that the install added is also removed; any other [projects.*] entries are preserved untouched.

Advanced flags

All perfxpert-code <backend> subcommands accept these dispatcher- owned flags before any backend-native args:

Flag	Effect
--dry-run	Run adapter.plan(), print the actions that would run, skip every write, skip spawn(). No consent prompt fires.
--quiet	Suppress the AMD banner and the per-step install progress log. Errors still go to stderr.
--force	Bypass the recursion guard (refuse-if-already-inside-a-perfxpert-session) and the clobber guard.
--allow-agents-md-append	Opt in to appending the rendered prompt into a tracked prompt file when a backend supports that flow. Today this matters for Claude/Codex AGENTS.md-family files; Gemini always stages .perfxpert/AGENTS.md and never edits GEMINI.md.

Dispatcher flags are consumed greedily from the front of argv; the first non-dispatcher token ends the consume and the remainder is passed to the backend binary unchanged. Example:

# SKIP-SAMPLE — --dry-run consumed by perfxpert-code; 'hello' reaches the backend
perfxpert-code claude --dry-run hello

# SKIP-SAMPLE — --dry-run here is treated as a backend-native flag
perfxpert-code claude hello --dry-run

The uninstall subcommand accepts a separate short flag list: --yes / -y (non-interactive consent) and --quiet.

Environment variables

Var	Default	Purpose
PERFXPERT_MCP_WARMUP_TIMEOUT_S	10	Seconds the perfxpert-mcp warmup probe waits for the server to answer tools/list during install verification.
PERFXPERT_MCP_RETRY_BUDGET_S	30	Total retry budget (seconds) for the tool-name-match retry loop in verify_mcp_live().
PERFXPERT_SKIP_LIVE_CHECK	unset	1/true/yes skips the post-install verify_mcp_live() step entirely. Useful in CI where the backend isn't reachable.
PERFXPERT_ASSUME_CONSENT	unset	1/true/yes bypasses the interactive consent prompt (install AND uninstall). Required for non-interactive stdin.
PERFXPERT_IN_AGENT_SESSION	set by dispatcher	Recursion guard — the dispatcher sets this to the backend name in the child env so a nested perfxpert-code <backend> refuses to launch. Override with --force.
PERFXPERT_AUTO_TRUST	unset	Codex-only. 1 auto-marks the current cwd as trust_level = "trusted" in ~/.codex/config.toml without prompting. Prints a [WARN] to stderr identifying the trusted cwd; this warning bypasses --quiet by design (security-relevant audit trail). Required for non-interactive Codex bootstraps; skipped for Claude / Gemini / opencode.

Troubleshooting

Gate never fires

Symptom: the backend runs bash / read / edit straight away without first routing through perfxpert_intent_classify.

Check, in order:

1. Run perfxpert-code <backend> --dry-run and confirm the "Install PreToolUse gate hook" (Claude) or "Install Gemini BeforeTool/AfterTool gate hooks" action is listed. If missing, the adapter refused to install the hook — look for a GateHookUnsupported warning in the install log.
2. Confirm the gate hook file is present: cat .claude/settings.json | jq '.hooks.PreToolUse' (Claude) or cat .gemini/settings.json | jq '.hooks.BeforeTool' (Gemini).
3. Start a fresh session. The lift is event-based: after perfxpert_intent_classify returns once, the gate lifts for the remainder of THAT session. A brand-new session (new session_id) always starts with the gate engaged again — by design.

Consent didn't persist

Symptom: re-running perfxpert-code <backend> in the same cwd re-prompts for consent.

Cause: the file set changed between runs. Consent is keyed on the tuple (backend, cwd-hash, file-set-hash) — adding or removing --allow-agents-md-append, or the user creating / deleting one of the target files, rolls the hash and invalidates the cached consent.

Workaround: export PERFXPERT_ASSUME_CONSENT=1 for the current shell if you want to skip re-prompting entirely. The consent cache lives under ~/.perfxpert/consent.json.

Backend not found

Symptom: perfxpert-code claude: 'claude' not found on PATH. Install via https://code.claude.com/docs/en/install (or the equivalent for gemini).

Cause: the dispatcher calls adapter.check_available() before any writes; if the binary is missing or below min_version, no install runs. The error message includes the adapter's install_hint with a verified URL.

Fix: install the backend per the printed hint. Re-run with --dry-run first to confirm the binary is now discovered:

# SKIP-SAMPLE — --dry-run still runs check_available + plan()
perfxpert-code claude --dry-run

Decision record PENDING error

Symptom: an older build prints GateHookUnsupported: Claude hook surface pending decision.

Cause: cycle-2 pre-PR-1 builds raised GateHookUnsupported if the hook-surface decision record was missing. The decision is now recorded (see the local Claude hook-surface decision record) — update to the PR 1 build (cycle-3 or later) and retry.

Codex refuses to run ("project not trusted")

Symptom: TrustRequired: current project <cwd> is not trusted by Codex. Pass PERFXPERT_AUTO_TRUST=1 to auto-trust, OR rerun interactively to accept the prompt.

Cause: perfxpert-code codex was run in a non-interactive context (e.g. CI, piped stdin) and the cwd wasn't yet in the [projects."..."] table of ~/.codex/config.toml.

Fix — pick one:

# SKIP-SAMPLE — CI path: auto-trust the cwd; warning prints to stderr
PERFXPERT_AUTO_TRUST=1 perfxpert-code codex

# SKIP-SAMPLE — interactive path: accept the prompt once, cached afterwards
perfxpert-code codex

Codex uninstall reports skipped_due_to_drift

Symptom: perfxpert-code uninstall codex completes but the report lists ~/.codex/config.toml under skipped_due_to_drift (non-zero exit).

Cause: either the file is git-tracked (refuses to write, same rule as Claude / opencode) or the TOML is malformed (parse failed, also refused). Drift protection is deliberate — the uninstall does not overwrite user state.

Fix: inspect the file manually. If it's git-tracked, git rm --cached ~/.codex/config.toml and re-run the uninstall. If it's malformed, fix the syntax (codex mcp list will hard-error on parse failure too) and re-run. Other backends in the same uninstall invocation are unaffected — they already cleaned up.

MCP warmup times out

Symptom: PartialInstall: perfxpert MCP registered but live-check failed: warmup timeout after 10s.

Cause: perfxpert-mcp took longer than PERFXPERT_MCP_WARMUP_TIMEOUT_S to answer tools/list. On slow disks or first-boot cold caches this can happen.

Fix: raise the timeout or skip live-check in CI:

# SKIP-SAMPLE — raise the warmup budget to 30s
export PERFXPERT_MCP_WARMUP_TIMEOUT_S=30
perfxpert-code claude

# SKIP-SAMPLE — CI path: skip live-check entirely
export PERFXPERT_SKIP_LIVE_CHECK=1
perfxpert-code claude

Gate-probe coverage (acceptance criterion 9a)

The verify_mcp_live() gate probe (invoked during install() unless PERFXPERT_SKIP_LIVE_CHECK=1) confirms the gate actually holds at runtime by running a canned query through one small model per backend. Acceptance criterion 9a from the multi-backend plan requires that probe to pass against at least one small model per backend — the specific models used are:

Backend	Small model used for gate probe	Notes
opencode	opencode-default	patched {block, retryWith} gate (bundled patch 0020).
claude	claude-haiku-4-5	native PreToolUse hook. R-new-4 scope: verified on haiku-4-5; other small models require independent re-verification at acceptance time.
gemini	gemini-2.5-flash	Native BeforeTool / AfterTool hooks + runtime-state file for event-based lift.
codex	not probed	Gate is prompt-layer-only (Codex PreToolUse is Bash-only). install() emits a warning-level log (codex gate hook unsupported on this backend) and records gate_hook_installed=False; verify_mcp_live still runs its connectivity checks (e.g. codex mcp list) but skips the gate-probe canary. Rationale is captured in the local Codex hook-surface decision record.

If you re-verify against a different small model for a non-Codex backend (for example claude-haiku-5 when it ships, or gemini-3.0-flash), update this table and the corresponding R-new-4 / I-N2 entries in the multi-backend plan. Today the probe-target model for each backend is hard-coded inside that adapter's verify_mcp_live() — there is no runtime override env var. If future work parameterises this, add the env var name here.

See also

• ../architecture/backend-adapter.md — the BackendAdapter protocol + lifecycle contract (contributors)
• ../integration/mcp-server.md — underlying MCP server + 56 READ_ONLY tool list (8 agent-hierarchy
  • 47 classifier/knowledge + 1 trace_diff.diff_runs)
• Local Claude hook-surface decision record — why Claude uses the native PreToolUse hook surface.
• Local Codex hook-surface decision record — why Codex uses prompt-layer-only enforcement (PreToolUse is Bash-only).
• getting-started.md — §"Choosing a backend" for the short recipe
