PerfXpert — Getting Started

This guide walks through install, the three entry points, the first analysis, and the top troubleshooting cases. For deeper dives follow the cross-links at the end of each section; nothing here duplicates reference material that lives elsewhere.

What is PerfXpert

PerfXpert is an AI-augmented GPU profiling and optimization tool for AMD ROCm. It reads rocprofv3 trace databases (.db), classifies bottlenecks against hardware SoL bounds, and produces targeted recommendations — either deterministically (air-gap) or with an LLM specialist agent. Supported GPUs: MI100 / MI200 / MI300 / MI350 and RDNA2 / RDNA3.

1. Install

Install in a clean ROCm container, then verify the CLI surfaces. The pip build hook compiles the bundled patched perfxpert-code binary when bun is already on PATH; bun bootstrap is available only as an explicit developer opt-in with PERFXPERT_AUTO_INSTALL_BUN=1.

PerfXpert ships as a single Python wheel. The setuptools build hook in setup.py compiles the AMD-branded bundled opencode binary during pip install. If bun is missing, pip fails closed unless PERFXPERT_AUTO_INSTALL_BUN=1 is set; that explicit opt-in lets setup.py bootstrap bun into the user's home directory for this build. If OS prerequisites such as curl, git, or unzip are missing, pip fails with the missing package-manager pieces instead of silently producing a broken perfxpert-code.

Prerequisites

• Python 3.10+
• curl, git, unzip, python3-venv, and python3-pip for GitHub installs.
• On Ubuntu 24+ and other externally managed Python environments, create and activate a virtual environment before invoking pip.
• bun on PATH. If you explicitly allow automatic bun bootstrap, also make sure curl and unzip are present and set PERFXPERT_AUTO_INSTALL_BUN=1.
• The repo-pinned experimental/python/perfxpert/opencode submodule populated if you are installing from a checkout without using the wrapper. The setup hook may attempt a scoped git submodule update --init --depth 1 -- experimental/python/perfxpert/opencode, but it will not clone an arbitrary upstream tag during install.

Opt-out env vars

• PERFXPERT_SKIP_BUNDLED_BUILD=1 — skip the entire opencode build. Use only in CI that intentionally skips the interactive TUI. The default perfxpert-code command will not fall back to an arbitrary upstream opencode binary.
• PERFXPERT_SKIP_OPENCODE_FETCH=1 — don't even attempt the scoped submodule init when the vendored opencode/ checkout is empty.
• PERFXPERT_OPENCODE_PATH=/path/to/opencode — explicit user-owned upstream escape hatch used only by perfxpert-code opencode ....

Note on Windows

PerfXpert does not auto-bootstrap bun on Windows. If the bundled opencode build is not available on your host, use the multi-backend launcher (perfxpert-code claude / codex / gemini) against a native backend CLI instead.

Distro package setup

Use a virtual environment for the supported install flow. Package examples are provided for Ubuntu 22.04, Ubuntu 24.04, UBI/RHEL 9, UBI/RHEL 10, and SLES 15.6. Package setup differs slightly by distro:

# SKIP-SAMPLE — Ubuntu 22.04 / 24.04
apt install -y curl git unzip python3-venv python3-pip
python3 -m venv .venv
. .venv/bin/activate

# SKIP-SAMPLE — RHEL 9
command -v curl >/dev/null || dnf install -y curl
dnf install -y git unzip python3.11 python3.11-pip
python3.11 -m venv .venv
. .venv/bin/activate

# SKIP-SAMPLE — RHEL 10
command -v curl >/dev/null || dnf install -y curl
dnf install -y git unzip python3 python3-pip
python3 -m venv .venv
. .venv/bin/activate

# SKIP-SAMPLE — SLES 15.6
zypper install -y curl git unzip python311 python311-pip
python3.11 -m venv .venv
. .venv/bin/activate

UBI/RHEL base images can provide curl through curl-minimal. That is valid for the wrapper and for opt-in bun bootstrap; do not force dnf to replace it with the full curl package unless command -v curl fails.

If the venv's pip/setuptools are too old and metadata preparation fails with filename has 'perfxpert', but metadata has 'unknown', upgrade them inside the venv and retry:

# SKIP-SAMPLE — only needed for older venv toolchains
python -m pip install -U pip setuptools wheel

Pip install

# SKIP-SAMPLE — install from a local checkout (editable mode)
pip install -e "experimental/python/perfxpert[all]"

…or pull the latest build straight from GitHub using the fast-install wrapper (see §1.2 for why):

# SKIP-SAMPLE — latest develop branch, no local clone needed.
# Requires bun on PATH; install bun from your approved package source first.
REF=develop; curl -fsSL "https://raw.githubusercontent.com/ROCm/rocm-systems/${REF}/experimental/python/perfxpert/scripts/pip-install-from-git.sh" | bash -s -- "${REF}"
# Pin a tag or commit hash:
# REF=v0.2.0; curl -fsSL "https://raw.githubusercontent.com/ROCm/rocm-systems/${REF}/experimental/python/perfxpert/scripts/pip-install-from-git.sh" | bash -s -- "${REF}"
# REF=<SHA>; curl -fsSL "https://raw.githubusercontent.com/ROCm/rocm-systems/${REF}/experimental/python/perfxpert/scripts/pip-install-from-git.sh" | bash -s -- "${REF}"
# Base package only:
# REF=develop; curl -fsSL "https://raw.githubusercontent.com/ROCm/rocm-systems/${REF}/experimental/python/perfxpert/scripts/pip-install-from-git.sh" | bash -s -- "${REF}" --extras ''

The GitHub install paths require git because pip shells out to git clone. The wrapper prints missing OS prerequisites and exits by default; it only runs apt, dnf, zypper, or sudo when PERFXPERT_AUTO_INSTALL_PREREQS=1 or --auto-install-prereqs is explicitly supplied. On externally managed system Python it tells the user to create a virtual environment first. It prefers the active python, then python3, and only falls back to another already-installed python3.10+ binary on PATH when the distro default is too old; it never downloads a separate Python runtime. During the pip build, setup.py builds from the pinned perfxpert opencode submodule; if bun is missing, it only bootstraps bun when PERFXPERT_AUTO_INSTALL_BUN=1 is explicitly set.

Pass the ref as the first argument after bash -s -- when you need to pin a specific tag or commit hash.

If you already have a local rocm-systems checkout, the equivalent command is:

# SKIP-SAMPLE — local checkout equivalent
bash rocm-systems/experimental/python/perfxpert/scripts/pip-install-from-git.sh develop
# bash rocm-systems/experimental/python/perfxpert/scripts/pip-install-from-git.sh <SHA>

The [all] extra pulls in anthropic, openai, rich, and litellm, which covers the hosted/local SDK-backed provider paths. The bundled opencode path is validated separately through the launcher/build flow. Omit [all] if you only want deterministic air-gap analysis (wrapper: pass --extras '' to skip extras entirely). On the GitHub wrapper path, the wrapper exits non-zero if the bundled patched perfxpert-code binary is still absent after install. Direct pip/editable paths use the same setup.py build hook: bun must be on PATH, or PERFXPERT_AUTO_INSTALL_BUN=1 must be set to allow setup.py to bootstrap it. Otherwise pip fails with an actionable prerequisite message.

1.2 Why the wrapper: scoped submodule init

pip install "perfxpert @ git+https://...rocm-systems.git#subdirectory=..." triggers pip's built-in git submodule update --init --recursive -q on the cloned work-tree BEFORE the perfxpert build hook ever runs. The rocm-systems root .gitmodules declares ~34 submodules (mscclpp, perfetto, glog, fmt, gtest, dyninst, sqlite, …) shared by the other projects in the monorepo; pip dutifully fetches every one of them. PerfXpert itself only needs ONE of them — the opencode submodule at experimental/python/perfxpert/opencode, used by the build hook to compile the bundled AMD-branded opencode binary.

Measured on a fast host against the live rocm-systems repo:

Step	Time
git clone --filter=blob:none --depth 1 of rocm-systems	~15 sec
git submodule update --init --recursive -q (pip default)	141 sec
git -c submodule.active=…/opencode submodule update --init --recursive -q	0.03 sec

On stock rocm/dev-ubuntu-22.04 with corporate-grade bandwidth the default step regularly runs 3-6 minutes — and the first 99% of that time is downloading dependencies of projects the PerfXpert wheel never touches.

scripts/pip-install-from-git.sh wraps pip with these env vars set:

GIT_CONFIG_COUNT=1
GIT_CONFIG_KEY_0=submodule.active
GIT_CONFIG_VALUE_0=experimental/python/perfxpert/opencode

pip uses os.environ.copy() when it spawns git subprocesses, so those env vars propagate into git submodule update --init --recursive -q and the submodule.active config restricts init to the single path listed. All other submodules stay at zero bytes on disk. Documented under git-config(1) "GIT_CONFIG_COUNT" and gitmodules(5) "submodule.<name>.active".

If the user insists on the plain one-liner without the wrapper, pip still works — they just pay the 3-6 min submodule-init penalty once. The setup.py build hook notices if the opencode submodule is still empty after pip's checkout (i.e. the user scoped submodule init out manually without including opencode), but it does not clone from the network during install. Instead it fails with the missing pinned submodule path so the default perfxpert-code install cannot silently fall back to an arbitrary opencode binary.

Opt-outs:

• PERFXPERT_SKIP_OPENCODE_FETCH=1 — don't attempt the scoped submodule init; air-gap CI that intentionally skips the bundled opencode build should set this AND PERFXPERT_SKIP_BUNDLED_BUILD=1.

What the build hook does

It applies all 26 patches in .patches/ (AMD branding, color palette, per-model system-prompt preambles with the STRICT-TOOL-DISCIPLINE stanza, the tool-priority gate, and the deep-rebrand session UI) to the pinned opencode submodule, runs the locked root bun install, then compiles the current-platform binary with bun run build --single --skip-install. The explicit --skip-install avoids opencode's secondary dynamic package install during the compile step; the locked install already populated the dependencies needed for the bundled binary. The final executable is copied to perfxpert/_bundled/opencode. Subsequent pip install invocations skip the rebuild if the binary is already newer than every patch file.

Opt-out: set PERFXPERT_SKIP_BUNDLED_BUILD=1 only in offline / sandboxed CI that intentionally skips the interactive TUI build. Default perfxpert-code requires the bundled binary built from the pinned submodule.

Bun missing: pip fails closed by default. Install bun from an approved package source, or explicitly set PERFXPERT_AUTO_INSTALL_BUN=1 to allow setup.py to bootstrap bun into the user's home directory for this build. If bootstrap prerequisites are missing, pip exits with distro-specific package-manager guidance.

2. Verify

perfxpert --help, perfxpert analyze --help, and the first lines of perfxpert doctor — everything the CLI exposes is one flag away.

# SKIP-SAMPLE — requires perfxpert on PATH from the pip install above
perfxpert doctor

perfxpert doctor end-to-end: Python check, MCP server reachable (56 tools registered), hosted/local/private LLM provider readiness, bundled opencode availability, ALL CLEAN.

Expected output ends with ALL CLEAN when everything is wired. The doctor checks:

• perfxpert version + Python ≥ 3.10
• openai-agents SDK
• MCP server reachable (perfxpert-mcp boots + 56 tools registered — 8 agent-hierarchy + 47 classifier/knowledge + 1 trace_diff.diff_runs)
• task store (~/.perfxpert or $PERFXPERT_TASK_ROOT)
• patched opencode binary resolution + bundled opencode config dir
• LLM providers configured (counts hosted/local/private providers against ANTHROPIC_API_KEY, OPENAI_API_KEY, PERFXPERT_LLM_LOCAL_URL or OLLAMA_HOST, and PERFXPERT_LLM_PRIVATE_URL or PRIVATE_LLM_ENDPOINT plus PERFXPERT_LLM_PRIVATE_API_KEY)
• bundled opencode availability; opencode handles its own provider auth

If opencode binary reports missing, the install skipped or failed the bundled build. Reinstall through the GitHub wrapper so the pinned submodule is populated and bun is bootstrapped before the wheel build finishes.

3. Three entry points

PerfXpert ships three command-line surfaces, all driving the same agent runtime.

• perfxpert analyze -i trace.db — non-interactive CLI. Consumes a rocprofv3 .db, emits a single report (text / JSON / markdown / webview HTML). Deterministic with --llm omitted; LLM-augmented with --llm {anthropic,openai,ollama,private,opencode}.

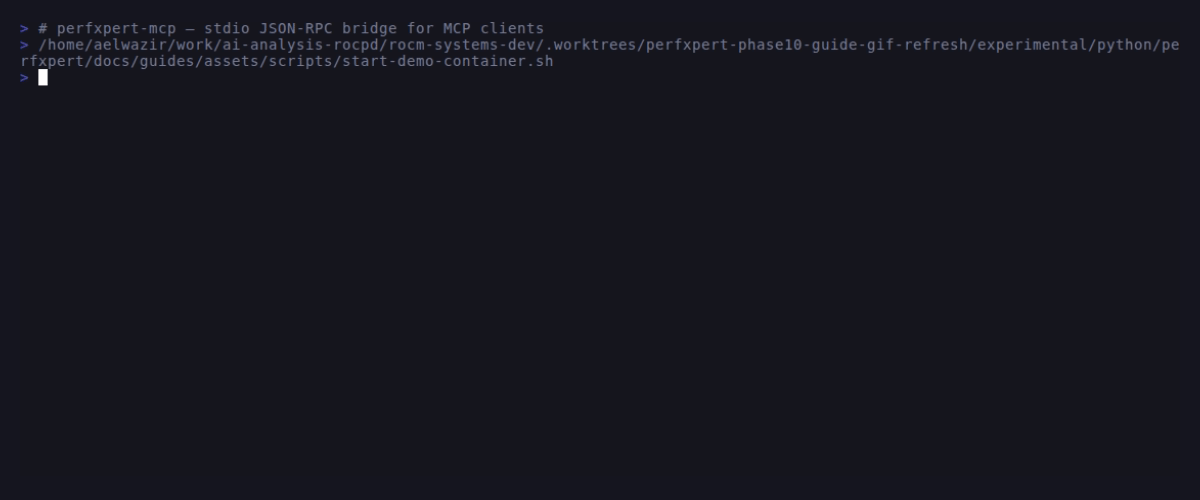

• perfxpert-mcp — stdio MCP server that re-exposes the 56 READ-ONLY analysis tools over JSON-RPC (8 agent-hierarchy entry points — Root, Analysis, Recommendation, Correctness, +3 technique specialists, + diff specialist — plus 47 classifier / knowledge tools and 1 trace_diff.diff_runs). Meant to be spawned by an MCP client (Claude Desktop, Claude Code, Codex CLI, Gemini CLI, opencode). See ../integration/mcp-server.md.

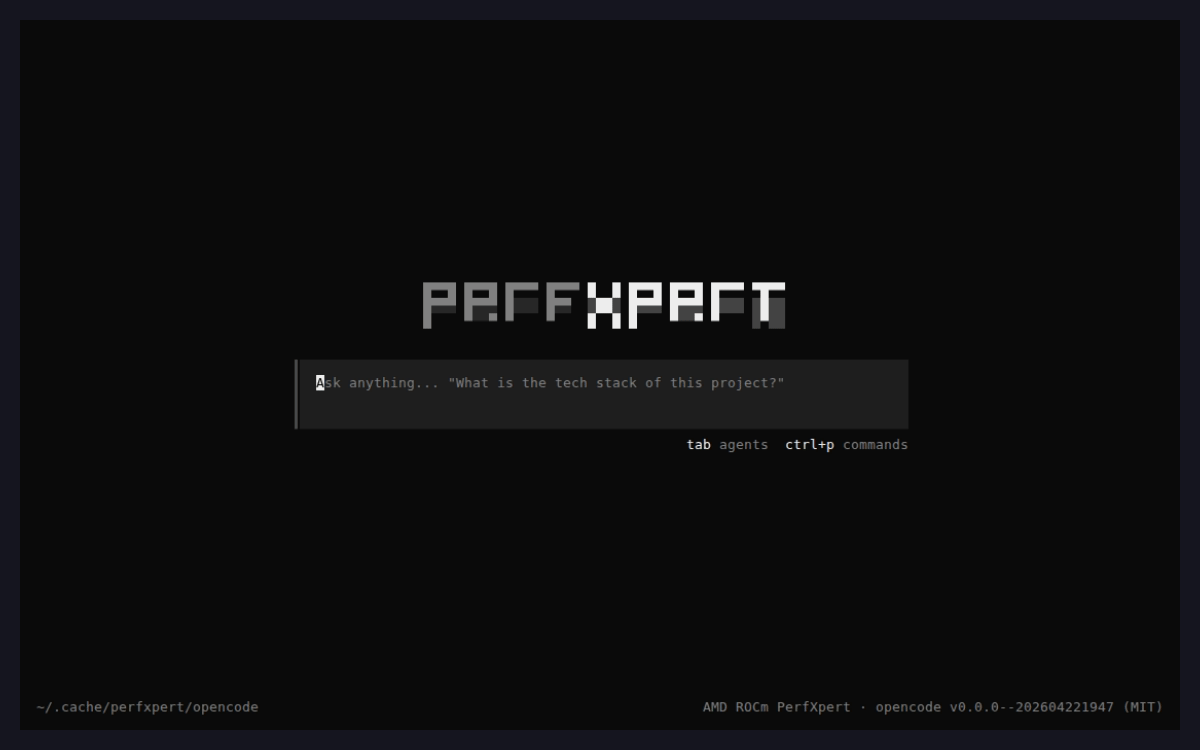

• perfxpert-code — interactive TUI (the patched opencode bundle). Conversational optimization loop with the Root → Analysis → Recommendation → Specialist agent hierarchy and gate-cascade correctness middleware.

3.1 Choosing a backend

perfxpert-code is multi-backend: packaged installs default to the bundled AMD-branded patched opencode, while source/editable checkouts prefer a locally built patched binary from the pinned opencode submodule. It can also wrap the user's native Claude Code, Gemini CLI, or Codex CLI while still enforcing the perfxpert tool-priority gate and registering the perfxpert-mcp server for free. Pick whichever matches your existing LLM workflow.

• Default (no subcommand) — patched opencode path, the recommended entry point. Wheels ship the bundled binary; source checkouts can rebuild the same patched fork locally. Prompt + MCP come pre-wired.
• perfxpert-code claude — registers perfxpert as an MCP server in the Claude Code project config, installs the native PreToolUse gate hook, then execs the user's claude CLI.
• perfxpert-code gemini — writes perfxpert-mcp into the project-local .gemini/settings.json, list-appends a project-cache prompt file to context.fileName, installs native Gemini BeforeTool / AfterTool hooks, and never touches the user's GEMINI.md, then execs gemini.
• perfxpert-code codex — writes the perfxpert MCP stanza into <cwd>/.codex/config.toml when the project is trusted (otherwise falls back to ~/.codex/config.toml), writes a project-root AGENTS.override.md compatibility override so Codex actually loads the perfxpert prompt, and execs codex. Gate enforcement is prompt-layer-only because Codex's native PreToolUse hook is Bash-only as of April 2026; the trust gate runs before MCP registration and either prompts or honors PERFXPERT_AUTO_TRUST=1 (see §3.2 below).

Short recipe per backend:

# SKIP-SAMPLE — requires the named backend binary on PATH
perfxpert-code                              # default (patched opencode path)
perfxpert-code claude                       # Claude Code (native TUI)
perfxpert-code gemini                       # Gemini CLI
perfxpert-code codex                        # Codex CLI
perfxpert-code uninstall claude             # reverse the Claude install

See backends.md for the full per-backend install / uninstall recipes, the gate-hook event-based lift semantics, the consent model (per-backend × cwd × file-set), and the env-var reference (PERFXPERT_MCP_WARMUP_TIMEOUT_S, PERFXPERT_MCP_RETRY_BUDGET_S, PERFXPERT_SKIP_LIVE_CHECK, PERFXPERT_ASSUME_CONSENT). The gate-probe coverage table in backends.md §Gate-probe documents which small-model probe each backend uses to verify mechanical gate enforcement at install() time — Codex is not probed because its gate is prompt-layer-only.

3.2 Codex trust gate

Codex refuses to run agents in a project directory that isn't marked trusted in ~/.codex/config.toml. perfxpert-code codex handles this as a separate step BEFORE MCP registration:

• Interactive sessions — the adapter prompts "Trust for Codex? [y/N]" and writes [projects."<abs-cwd>"].trust_level = "trusted" on confirmation.
• CI / non-interactive — set PERFXPERT_AUTO_TRUST=1 to auto-trust the cwd without prompting. An always-on stderr warning ("perfxpert-code codex: auto-trusted because PERFXPERT_AUTO_TRUST=1") is emitted even under --quiet — this is the security-warning contract.
• Without either path, the adapter raises TrustRequired and exits non-zero. ConfigClobber is raised if ~/.codex/config.toml is git-tracked or fails to parse.

3.3 First run — perfxpert init

New in Phase 8 (Confluence roadmap row #29). A single guided wizard that chains the four things every new user asks about into one flow so you don't have to discover them separately:

1. GPU detection — runtime discovery runs rocminfo, rocm-smi, and amd-smi when they are present, with read-only KFD topology as a fallback for ROCm environments where rocminfo cannot open the device node. The local init wizard uses GPU facts such as gfx id, CU count, clocks, wave size, LDS size, VRAM, PCIe, and power limits. Theoretical peak FLOPS are derived for newly discovered local architectures when enough topology is available; perfxpert/knowledge/gpu_specs.yaml remains the offline fallback for non-local architectures and for fields a ROCm tool does not expose on that stack. Runtime discovery is scoped to the machine where the command runs. If an agent is optimizing a workload over SSH, run the ROCm discovery commands on that remote target host or run PerfXpert on the remote host itself; do not use the controller machine's local GPU facts for remote roofline or SoL analysis. If local runtime specs would describe the wrong machine, set PERFXPERT_DISABLE_RUNTIME_GPU_SPECS=1 and pass explicit remote facts / --arch.
2. Framework detection — Tier-0 source scan (same scanner as analyze --source-dir, same .git / node_modules filters) plus a Python import probe for torch, tensorflow, jax, cupy.
3. Config generation — writes ~/.config/perfxpert/config.yaml with the Pydantic-validated defaults and the detected provider. When the file already exists the wizard prints a unified diff and asks before overwriting (skipped under --non-interactive).
4. Suggested first profiling command — the lowest rung of the cost-ordered ladder (rocprofv3 --sys-trace). When the source scan found HIP kernels, a second --pmc SQ_WAVES GRBM_COUNT GRBM_GUI_ACTIVE line is emitted too; when a Python framework is detected, the target is python train.py instead of ./your_app.

# SKIP-SAMPLE — requires perfxpert on PATH from the pip install above
perfxpert init                              # interactive (confirms diffs)
perfxpert init --non-interactive            # CI / scripting
perfxpert init --source-dir ./my_project    # target a specific source tree
perfxpert init --arch gfx942                # override GPU detection
perfxpert init --provider openai            # pin the LLM provider
perfxpert init --config-path /tmp/pxcfg.yaml --non-interactive   # sandbox

Sample transcript on an MI300X host with ANTHROPIC_API_KEY exported:

== perfxpert init — first-run wizard ==

Step 1/4 — GPU detection
  detected: gfx942 (MI300X, 304 CU)
    peak FP32: 163.4 TFLOPS
    peak HBM : 5.3 TB/s

Step 2/4 — Framework detection
  source dir: .
  python deps: PyTorch importable ⇒ framework: PyTorch
  source scan: 12 file(s), 3 kernel(s) ⇒ programming model: HIP
  (both detected ⇒ mixed python+kernel workload)

Step 3/4 — Config generation
  provider  : anthropic
  airgap    : false
  max_tokens: 2048
  target    : ~/.config/perfxpert/config.yaml

Step 4/4 — Suggested first profiling command
  primary : rocprofv3 --sys-trace -d ./profile_out -- python train.py
  extra   : rocprofv3 --pmc SQ_WAVES GRBM_COUNT GRBM_GUI_ACTIVE -d ./profile_out_pmc -- python train.py
  (--pc-sampling / --att are second-tier — run after Tier-1 identifies hot kernels)

Then:
  perfxpert analyze -i ./profile_out/*.db --source-dir . --format webview -o report

Wizard complete. Your setup is ready.

--non-interactive never prompts; it always overwrites the config if one exists, so it's safe in CI. The current init-wizard provider probe order is: ANTHROPIC_API_KEY → OPENAI_API_KEY → PERFXPERT_LLM_PRIVATE_URL (compat: PRIVATE_LLM_ENDPOINT) → OLLAMA_HOST → patched opencode (no key required). The broader CLI surfaces (analyze, doctor) also accept the newer PERFXPERT_LLM_LOCAL_URL spelling for Ollama.

4. First analysis (60 seconds)

Profile a trivial HIP app, then analyze.

# SKIP-SAMPLE — requires ./my_app built against ROCm and rocprofv3 on PATH
rocprofv3 --sys-trace --summary -d ./out -o results -- ./my_app
perfxpert analyze -i ./out/results_results.db --format text

rocprofv3 writes ./out/results_results.db (the _results suffix is the rocprofv3 default); perfxpert analyze reads it, classifies the bottleneck (compute-bound / memory-bound / latency-bound / idle-bound), ranks hot kernels by Amdahl weight, and emits recommendations.

Deterministic airgap analysis of the fixture compute_bound.db — SUMMARY, TIME BREAKDOWN, HOTSPOTS, HARDWARE COUNTERS, RECOMMENDATIONS, all in under a second.

Output formats:

# SKIP-SAMPLE — requires a real trace.db
perfxpert analyze -i trace.db --format json -d ./out -o report
perfxpert analyze -i trace.db --format markdown -d ./out -o report
perfxpert analyze -i trace.db --format webview -d ./out -o report

--format json | jq — flat top-level keys make the report easy to drive from scripts or dashboards.

--format markdown — drop straight into PR descriptions or a wiki.

--format webview -o report produces a self-contained report.html with the fixed 7 top-level sections (Overview, Summary, Execution, Hotspots, Hardware Counters, Recommendations, Tier-0 when --source-dir is set). AMD dark theme, SVG gauges, collapsible cards — email-ready.

Source-line correlation

When --source-dir is supplied alongside -i, every row of the Top Kernel Hotspots table grows a ▾ chevron next to the kernel name. Clicking the chevron expands an inline panel — same visual style as the Recommendation card drawer — showing the kernel's Definition (file:line where the __global__ symbol is declared) and every detected Launch site (file:line of each hipLaunchKernelGGL / triple-angle dispatch). Each line renders with a Copy button and a launch-type badge (__global__, HIP_KERNEL_LAUNCH, <<< >>>), VTune/NSight-style.

When --source-dir is not supplied the panel is still present but explains how to enable the correlation. When the scanner did run but no symbol matches the hotspot's basename, the panel shows "No matching source location detected" — useful signal that the profiled binary and the --source-dir tree may be out of sync.

Source-line correlation is data, not advice, so the panel ships regardless of the Tier-0 instrumentation-advice gate (has_profiling). The markdown and text formats append a compact Source: file.hip:42 (definition), file.hip:88 (launch) line under each hotspot row; the JSON format emits hotspots[i].source_locations: [{file, line, kind}] (schema 0.3.1).

ATT flame graph

When the input DB carries Advanced Thread Trace (ATT) data — i.e. perfxpert analyze -i trace.db --att-dir <att/> — the Thread Trace scard renders a dependency-free inline SVG flame graph directly below the per-kernel stall table. One horizontal row per kernel, one stacked rectangle per stall category (VMEM latency / LDS conflict / dependency chain / branch divergence), width proportional to the weighted stall bucket. Colors reuse the webview stall-category palette, wide rects carry an inline <label> <pct>% tag, narrow ones fall back to the shared hover-tooltip.

Click any rectangle to jump straight to the matching recommendation card (id="rec-<kernel>"), which briefly flashes to help you trace the visual signal back to the structured advice. Wheel-zoom works on the SVG viewBox (double-click to reset). The whole element is a single self-contained <svg> — no Speedscope, no D3, no Chart.js, no external CSS — so the report still opens correctly from any file:// path in an airgapped viewer.

<!-- shape (truncated) inside the Thread Trace `.scard` -->
<div class="att-flame">
  <svg class="att-flame-svg" viewBox="0 0 960 …" …>
    <rect class="att-flame-rect" data-k="kernel_foo"
          onclick="…scrollIntoView('rec-kernel_foo')…" fill="#ff8c00"/>
    …
  </svg>
</div>

The flame graph is webview-only; the Markdown / text / JSON formats already surface the same data via the per-kernel stall table and thread_trace key respectively, so no schema bump was required.

Live roofline chart

When the input DB carries Tier-2 hardware counters (i.e. rocprofv3 --pmc SQ_INSTS_VALU FETCH_SIZE WRITE_SIZE …) the webview renders a Live Roofline .scard between Hardware Counters and Optimization Recommendations. The section is a dependency-free inline SVG with log-log axes (arithmetic intensity on X, achieved FLOPs/s on Y). One dot per top-K kernel, coloured by regime (compute-bound / memory-bound / balanced). Peak-compute horizontal ceilings per dtype — FP32 / FP16 / BF16 / FP8 / INT8 — are overlaid with the dominant dtype at full opacity and others dimmed. The HBM bandwidth diagonal (slope 1 in log-log space) and the ridge-point annotation (gfx942 · 163 TF/s · 5.3 TB/s · ridge @ 30.8 FLOPs/B) are drawn from perfxpert/knowledge/gpu_specs.yaml. Runtime discovery is used for local-only GPU initialization and for runtime-only local architectures that are not yet present in the static catalog.

Click any dot to jump straight to the matching recommendation card (id="rec-<kernel_basename>") — same anchor convention as the ATT flame graph. Scroll-wheel to zoom the chart viewBox, double-click to reset. Dtype detection is a regex over the demangled kernel name (_bf16, _fp16, _fp8, _int8); pass dtype_hint="bf16" to the underlying perfxpert.tools.roofline.plot_points API to force a single dtype when your kernels don't follow that convention.

The Markdown / text / JSON fallbacks carry the same data under ## Live Roofline tables (kernel / AI / achieved GFLOPs/s / regime / dtype / confidence) and a roofline key at the top of the JSON document.

Report contents (every format)

Every format — text, JSON, markdown, webview — carries the same dataset. The deterministic pass runs unconditionally (even with --llm <prov> or under airgap); the LLM supplies narrative + primary-bottleneck + recommendation prose on top. The four formats differ only in rendering, not in completeness. Every report contains:

• Agent narrative — the LLM prose (or the airgap template in deterministic mode), spliced at the top of the report under a "Summary" heading.
• Primary bottleneck — explicit label (compute / memory_transfer / latency / mixed / data_insufficient).
• Time breakdown — kernel / memcpy / API-overhead percentages plus total runtime and kernel count. Multi-DB reports also surface a normalized runtime for overlap-safe percentage math while preserving the wall-clock total runtime separately.
• Hotspot list — top-N kernels ranked by total duration, with call count, avg / min / max duration, percent of total.
• Memory analysis — H2D / D2H / D2D volumes, total duration, and average bandwidth per direction.
• Hardware counters — Tier-2 derived metrics (GPU utilization, avg waves, HBM utilization) plus the raw collected counter table. Shows a graceful "not collected" placeholder when the .db was captured without --pmc.
• Kernel resources / occupancy — VGPR / SGPR / LDS / scratch and theoretical occupancy for each hotspot kernel when the trace carries kernel-symbol metadata.
• API overhead breakdown — top HIP / HSA API calls by total time plus warmup outliers when detected.
• Thread-trace (Tier 3) — included when --att-dir is set; per-instruction stall ratio and bottleneck category (VMEM, LDS-bank, dep-chain, branch-divergence).
• Communication analysis (RCCL) — included when the trace carries RCCL collectives (either category='RCCL' regions or RCCL-named kernels matching the fallback regex). Surfaces per-collective message bytes, duration, bus bandwidth (algorithm-adjusted; factor is 2(N-1)/N for AllReduce and (N-1)/N for AllGather/ReduceScatter/AllToAll), achievable peak from the per-arch XGMI spec, efficiency % (poor <40%, fair 40-70%, good >70%), and comm/compute overlap % (time inside RCCL kernels that coincides with non-RCCL work). When the DB lacks category='RCCL' spans the section is still rendered, but summary.capture_incomplete=true and msg_bytes is zero (install rocprofv3 ≥ 6.2 for full RCCL arg capture).
• Tier-0 source findings — included when --source-dir is set; detected kernels, anti-patterns, suggested counters, and the suggested first-profiling command.
• Recommendations (merged) — LLM + deterministic recommendations merged and deduped by target, each with category / issue / suggestion / citation / code-snippet-before / code-snippet-after (where available).
• Warnings — alert block (empty when no warnings fire).
• Metadata — GPU arch, DB path, kernel count, total runtime, provider, model (footer).

The JSON format exposes each section under a flat top-level key (.time_breakdown, .hotspots, .memory_analysis, .hardware_counters, .kernel_resources, .api_overhead, .tier0_findings, .recommendations, .narrative, .primary_bottleneck, .warnings, .metadata) — so jq pipelines can slice the report without reaching into nested schema shapes.

For multi-DB inputs, time_breakdown.total_runtime remains the wall-clock runtime of the merged trace window. execution_breakdown.normalized_runtime_ns and the markdown/text "Normalized runtime" labels are the summed shard envelope used for percentage math so overlapping shards do not under-report API overhead or idle time.

Report structure

Every report renders the same top-level sections in a fixed order. The main take-away: the Tier-0 source scan always lives in its own section — NEVER folded into the main recommendations table.

The webview emits the following 8 top-level sections, in order:

1. Overview — bottleneck verdict, total runtime, kernel-time KPI, analysis tier (all inside the first .scard card right after the <header>).
2. Summary — agent narrative (findings-derived: dominant kernel + metric evidence + primary-bottleneck verdict). Never routing prose. Emitted as a .scard labelled "Summary" with the primary bottleneck surfaced as a header pill and warnings as a findings list.
3. Execution Breakdown — stacked kernel / memcpy / API-overhead / GPU-idle bar + per-row details.
4. Top Kernel Hotspots — top-N kernels by total duration.
5. Hardware Counters — Tier-2 gauges (GPU utilization, wave occupancy) + raw counter table. Renders a Tier-1 placeholder when counters are missing.
6. Live Roofline — log-log roofline chart (inline SVG), only when Tier-2 counters are present. See "Live roofline chart" above.
7. Optimization Recommendations — merged LLM + deterministic recommendations, deduped by target. Only real perf-issue items (e.g. hot-kernel triage, cache-unfriendly access, synchronous hipMemcpy patterns). Instrumentation advice (what counters to collect, what rocprofv3 command to run first) is NOT in this list.
8. Tier-0 Source Scan — only when --source-dir is set. Emitted as a single wrapper .scard (id tier0-scan) containing <h3>Profiling Plan</h3> (suggested rocprofv3 --sys-trace … command, suggested counters, other instrumentation actions) and a Detected Code Patterns table with actual code-level perf issues found by the scanner (these ALSO appear in the main Recommendations list so they don't get overlooked).

The Markdown format mirrors this exactly: # PerfXpert AI Performance Analysis → ## Summary (narrative + warnings) → --- horizontal rule → **Database:** / **Analysis Date:** / **Analysis Tier:** metadata block → ## Time Breakdown → ## Top Kernel Hotspots → … → ## Recommendations → (if --source-dir) --- → ## Tier 0 — Source Scan.

The Text format prepends a SUMMARY banner (with the primary bottleneck, narrative, and warnings) above the TIME BREAKDOWN table, keeps every other section in the same order as the webview, and ends with the TIER-0: PROFILING PLAN + DETECTED CODE PATTERNS banners when --source-dir is set.

The JSON format exposes each section under a flat top-level key (.time_breakdown, .hotspots, .memory_analysis, .hardware_counters, .kernel_resources, .api_overhead, .tier0_findings, .recommendations, .narrative, .primary_bottleneck, .warnings, .metadata). The Tier-0 block lives under .tier0_findings.profiling_plan + .tier0_findings.code_patterns. The document carries "schema_version": "0.3.0" on every agentic run. The version bumps additively along the chain 0.3.0 → 0.3.1 → 0.3.2 → 0.3.3 → 0.3.4 → 0.4.0 as richer data appears: 0.3.1 when --source-dir was supplied and at least one hotspot carries source_locations; 0.3.2 when RCCL / NIC communication data is present (from rccl_analysis.analyze_collectives); 0.3.3 when any rec carries a predicted_impact_range (Change-Impact Prediction); 0.3.4 when a top-level roofline key is emitted (Live Roofline, from roofline.plot_points); 0.4.0 when ATT data is present (ATT trumps the others). The legacy .llm_enhanced_explanation key mirrors .narrative for backwards compat; new consumers should read .narrative directly.

Severity legend — hotspot panel

Each hotspot row (and expanded source panel) carries a severity class derived from its share of total runtime. The webview colors the left border + pill badge; the markdown / text formats emit a [CRITICAL] / [HOT] / [WARM] / [COOL] tag on the citation line.

Class	Threshold (% of total runtime)
CRITICAL	≥ 20%
HOT	5% – 20%
WARM	1% – 5%
COOL	< 1%

Advanced recommendations (--advanced)

The advanced tier is an opt-in set of recommendations that are too speculative to show by default but valuable to power users: LLVM loop-hint pragmas (#pragma clang loop unroll[_count|disable]). They are gated behind the --advanced CLI flag (or the PERFXPERT_ADVANCED_RECS=1 environment variable).

# SKIP-SAMPLE — requires a real trace.db
perfxpert analyze --advanced -i trace.db --format text
# Equivalent (CI-friendly):
PERFXPERT_ADVANCED_RECS=1 perfxpert analyze -i trace.db --format text

When the gate is ON, pragma recommendations surface alongside regular recs with a [advanced] badge next to the priority label and a mandatory Verify with: perfxpert diff ... footer. The knowledge base (perfxpert/knowledge/compiler_pragmas.yaml) allows exactly three pragmas: clang_loop_unroll_full, clang_loop_unroll_count, and clang_loop_unroll_disable. Seven other clang loop hints (vectorize, interleave, distribute, pipeline, vectorize_predicate) are explicitly rejected because the LLVM amdgpu backend ignores them on HIP device code.

Hard rules enforced by the fence slice in perfxpert/agents/fence/compute_specialist.md:

• Every pragma rec must carry a Tier-0 source anchor (source_file/source_line) — no anchor, no rec.
• unroll_count(N) only uses N from the YAML factor_sweep ([2, 4, 8]); the agent may never invent other factors.
• Triton-generated kernels (source path contains .triton/) are skipped — the hint would evaporate on the next JIT invocation.

Under the default (gate OFF) the report is unchanged; pragma recs are filtered out of the rendered output.

Kernel-fusion candidates

When the Compute Specialist surfaces adjacent-short-kernel pairs with matching tensor-shape signatures, it cites a recipe from perfxpert/knowledge/fusion_patterns.yaml:

• Elementwise + Elementwise → single kernel
• Elementwise + Reduce → epilogue fuse
• Normalization + Residual → single pass
• GEMM + Bias-Add + Activation → fused epilogue

Estimated speedup comes back as an (est_speedup_lo, est_speedup_hi) bracket. Verify with perfxpert diff after applying the fusion.

GPU runtime monitor (thermal / power)

PerfXpert ingests pre-captured amd-smi / rocm-smi JSON logs — we do not shell out to the tools at analyze time. Capture in advance:

# SKIP-SAMPLE — capture a 30-second thermal log before analyze
amd-smi monitor --json --interval 1 --duration 30 > /tmp/amd-smi.json
export PERFXPERT_GPU_MONITOR_LOG=/tmp/amd-smi.json
perfxpert analyze -i trace.db

Latency specialists consult the log opportunistically to flag thermal / power throttle as root cause vs contributing factor.

Unified-memory + MI300X cross-die

The Memory Specialist now runs unified_memory.analyze_paging(db_path) on every memory-bound recommendation, surfacing:

• CPU-resident GPU-accessed pages (HtoD/DtoH > 1 MiB spikes).
• MI300X XCD-to-XCD fabric traffic totals and a per-access penalty estimate (~30 ns/access).
• Targeted recommendations — pin host buffers, hipMemAdvise, or partition with ROCR_VISIBLE_DEVICES.

Dependency graph + GPU bubbles

The Latency Specialist reconstructs a coarse DAG of kernel dispatches via dependency_graph.reconstruct_dag(db_path) and flags:

• Per-stream idle gaps > 2 us as bubbles.
• Over-synchronisation (sync_event_count > kernel_count / 4).
• critical_path longer than 60% of wall time → structural parallelism recommendation (stream partitioning, HIP graph capture).

Predicted impact on recommendations

Every rec card whose category maps onto a recognised optimisation technique now carries a Predicted line bracketing the expected speedup and citing its source:

[HIGH] Compute-Bound Kernel  (Confidence: 85%)
  Issue: Kernel 'heavy_valu_kernel' dominates GPU time: 99.9%
  Suggestion: Reduce VGPR pressure via __launch_bounds__
  Predicted: 1.15-1.45x (conf 70%)

Rules (all enforced by perfxpert.tools.predict_impact):

• Amdahl guard — kernels below 5% of total runtime never get a prediction; the rec renders without a Predicted line.
• Tier-2 gate — requires counter data (--pmc basic on the baseline run). Tier-1 reports fall back to a "needs counters" rationale and skip emission.
• Conservative bracket — the emitted hi is catalog_hi × 0.85 so predictions always undersell.
• Provenance — the source_citation field on the rec points back to the seed entry in knowledge/proven_optimizations.yaml.

Representative optimization examples include:

Technique	Typical trigger	Example recommendation shape
vgpr_reduction	high VALU pressure + low occupancy	add __launch_bounds__, trim live ranges, re-check occupancy
lds_tiling	memory-bound kernel with reusable neighborhood loads	tile into LDS, reduce redundant global reads
mfma_enablement	GEMM-like math dominated by VALU instead of MFMA	switch to MFMA-friendly data/layout path
fast_math_flag	transcendental-heavy kernel with acceptable precision slack	test -ffast-math or narrower math flags
hip_stream_overlap	high memcpy/API-overhead share with serialized transfers	move copies to async streams and synchronize only at the true dependency

For contributor-facing examples of how those cases are recorded, see ../contributing/proven_optimizations.md.

The prediction is always on when a technique is surfaced — there is no CLI gate. The JSON schema bumps to 0.3.3 when at least one rec carries predicted_impact_range; the Live Roofline payload (roofline top-level key) then bumps it to 0.3.4, and ATT data (when present) pins it at 0.4.0.

5. Multi-GPU / MPI workflows

Correct pattern — MPI OUTSIDE, rocprofv3 INSIDE, per rank. Each rank gets its own rocprofv3 instance and writes its own .db file:

# SKIP-SAMPLE — requires mpirun + ./app built against ROCm
mpirun -n 8 rocprofv3 --sys-trace -d ./out -o results_%q{MPI_RANK} -- ./app
perfxpert analyze -i ./out/merged_processes.db

Wrong — do NOT emit this form. rocprofv3 attaches to mpirun, not to the ranks, so the .db is empty or contains only mpirun's no-GPU runtime:

# SKIP-SAMPLE — shown for contrast; DO NOT RUN
rocprofv3 [flags] -- mpirun -n 8 ./app   # WRONG

Additional rules (enforced in _bundled/opencode_config/AGENTS.md):

• Use -o results_%q{MPI_RANK} (or %nid% on Slurm) so ranks don't race on the same file.
• Do NOT use --process-sync with OpenMPI — it strips LD_PRELOAD and breaks tracer injection.
• Slurm / jsrun wrappers go OUTSIDE rocprofv3 too: srun rocprofv3 ... -- ./app.

The full canonical rule — including FETCH_SIZE / WRITE_SIZE PMC isolation — lives in ../../perfxpert/_bundled/opencode_config/AGENTS.md.

6. LLM modes

Two modes, one code path. The agent hierarchy and gate cascade behave identically in both; the difference is whether an LLM rewrites the narrative and recommendation titles.

Air-gap (default, deterministic)

# SKIP-SAMPLE — requires a real trace.db
PERFXPERT_AIRGAP=1 perfxpert analyze -i trace.db
# or simply omit --llm — omission defaults to deterministic mode
perfxpert analyze -i trace.db

Air-gap mode: no outbound calls, rule-based classification against the knowledge YAMLs. primary_bottleneck is still set. recommendations[].name populates only with LLM mode; air-gap returns bottleneck + narrative only (verbatim from the rule tables).

LLM-enabled

All five primary providers are selectable from the CLI with --llm <name>: anthropic, openai, ollama, private, opencode. The CLI also accepts claude-code as a compatibility alias for the patched opencode backend used by perfxpert-code. The same five primary providers are also reachable from Python via perfxpert.api.agent_root(..., provider=<name>) — the CLI is a thin wrapper over the public Python API.

# SKIP-SAMPLE — requires a real trace.db and an LLM credential
export ANTHROPIC_API_KEY="sk-ant-..."
perfxpert analyze -i trace.db --llm anthropic
# or:
export OPENAI_API_KEY="sk-..."
perfxpert analyze -i trace.db --llm openai

An LLM analysis can take 1-5 minutes per call — PerfXpert draws a live progress spinner on stderr so you can see each agent phase as it enters / exits (entering root, entering analysis, etc.) and if the fallback chain cascades across providers. The spinner is stderr-only. For non-text formats, reports write to files by default; use --format json -o - > out.json when a pipeline needs stdout.

Agent-phase narrative on stderr: entering root → exit root → deterministic analysis: running → deterministic analysis: done → report. (Shown under PERFXPERT_AIRGAP=1 for a determinism; live --llm anthropic renders the identical phase format.)

Two opt-outs:

• --no-progress — silent (useful for CI and log capture).
• --verbose — full log lines instead of the compact spinner (unchanged from prior releases).

When stderr is not a TTY (piped / redirected / under a CI runner) the spinner degrades automatically to plain [perfxpert] <phase> status lines, with no ANSI escapes.

For the full provider matrix, model-selection ladder, and fallback chain, see §11 LLM Providers below.

Credentials

Each provider has a canonical env var PerfXpert reads at session boot; the --llm-api-key CLI flag is an equivalent one-shot override. If both are set and differ the flag wins (PerfXpert emits a one-line stderr WARNING so you know which credential is active):

--llm	Primary env var	PerfXpert alias	Notes
anthropic	ANTHROPIC_API_KEY	PERFXPERT_LLM_ANTHROPIC_KEY	Either works; alias kept for migration parity
openai	OPENAI_API_KEY	PERFXPERT_LLM_OPENAI_KEY	Either works
private	PERFXPERT_LLM_PRIVATE_API_KEY	—	Plus PERFXPERT_LLM_PRIVATE_URL or PRIVATE_LLM_ENDPOINT and normally PERFXPERT_LLM_PRIVATE_MODEL
ollama	— (no key)	—	Plus PERFXPERT_LLM_LOCAL_URL or OLLAMA_HOST (default http://localhost:11434)
opencode	— (no key)	—	Default perfxpert-code uses the bundled binary; PERFXPERT_OPENCODE_PATH is only for perfxpert-code opencode ...

# SKIP-SAMPLE — requires a real trace.db and a live ANTHROPIC_API_KEY
# CLI flag — equivalent to exporting ANTHROPIC_API_KEY
perfxpert analyze -i trace.db --llm anthropic --llm-api-key sk-ant-...

# Env var — survives across invocations
export ANTHROPIC_API_KEY="sk-ant-..."
perfxpert analyze -i trace.db --llm anthropic

Missing credentials surface a clean pre-flight error. Starting with Phase 8, running --llm anthropic with no ANTHROPIC_API_KEY and no --llm-api-key raises a one-line stderr message like:

⚠ LLM auth failed for anthropic. Check ANTHROPIC_API_KEY is set correctly.

and exits with rc=2 BEFORE any network call or formatter pass runs. No empty HTML / markdown file is left behind — the previous "silently produces a blank report" failure mode is gone.

--llm anthropic with no ANTHROPIC_API_KEY — one-line stderr error, rc=2, and no empty preflight.html left behind.

---

7. Compare runs + CI gating (perfxpert diff / perfxpert ci)

Compare two rocpd databases — baseline vs new — and surface per-kernel deltas, wall-time delta, and a narrative summary. Two shapes:

• perfxpert diff <baseline.db> <new.db> — informational. Always returns rc=0. Four formats: text / markdown / json / webview.
• perfxpert ci <baseline.db> <new.db> — gating wrapper. Returns rc=1 when wall_delta_pct > --threshold (default 5%; env override PERFXPERT_CI_REGRESSION_THRESHOLD). Designed for CI systems.

Both route through the same trace_diff.diff_runs engine under the hood — MCP clients, the perfxpert analyze --baseline <db> splice, and the agentic correctness gate all see the same numbers.

# SKIP-SAMPLE — requires two rocpd .db files
# Informational diff (rc=0 always)
perfxpert diff baseline.db new.db --format text
perfxpert diff baseline.db new.db --format webview -d ./out -o diff
perfxpert diff baseline.db new.db --format json > diff.json

# CI-gating wrapper — rc=1 when wall regression > --threshold
perfxpert ci baseline.db new.db --threshold 3.0 --format json > diff.json

The --baseline splice into perfxpert analyze produces a regular report plus a "Changed vs baseline" section at the bottom (or a top-level trace_diff key for --format json, schema 0.3.1):

# SKIP-SAMPLE — requires an original baseline .db and a new .db
perfxpert analyze -i new.db --baseline baseline.db --format webview \
    -d ./out -o optimized_vs_baseline

CI integration snippets

GitHub Actions:

# .github/workflows/perf.yml
- name: Profile baseline
  run: rocprofv3 --sys-trace -o baseline ./app && mv baseline_results.db baseline.db
- name: Profile candidate
  run: rocprofv3 --sys-trace -o new ./app && mv new_results.db new.db
- name: PerfXpert regression gate
  run: perfxpert ci baseline.db new.db --threshold 3.0 --format json > diff.json

GitLab CI:

# .gitlab-ci.yml
perf-gate:
  script:
    - rocprofv3 --sys-trace -o baseline ./app && mv baseline_results.db baseline.db
    - rocprofv3 --sys-trace -o new ./app && mv new_results.db new.db
    - perfxpert ci baseline.db new.db --threshold 3.0 --format json > diff.json
  artifacts:
    when: always
    paths:
      - diff.json

Environment override (same binary, different policy per branch):

# SKIP-SAMPLE — environment knob
export PERFXPERT_CI_REGRESSION_THRESHOLD=1.5   # stricter for main; loose for topic branches
perfxpert ci baseline.db new.db    # no --threshold needed

---

8. Tier 0: Source Code Scanning

Analyze your source code before profiling — no GPU or trace database needed.

# SKIP-SAMPLE — requires a ./my_app source tree and/or trace.db
# Scan source directory
perfxpert analyze --source-dir ./my_app

# Combined: source scan + trace analysis
perfxpert analyze -i trace.db --source-dir ./my_app

Pure source scan (--source-dir only, no -i) detecting a synchronous hipMemcpy loop + hipDeviceSynchronize inside a hot loop, and emitting a rocprofv3 profiling plan.

Combined mode: trace + source scan rendered into a single webview report. The Tier-0 block lives in its own <section id="tier0-scan"> wrapper card — never folded into the main recommendations table.

PerfXpert scans .hip, .cpp, .cu, .cl, .py, .h, .hpp files and detects:

• GPU kernel definitions and launch patterns
• Memory operations (hipMemcpy, hipMemcpyAsync)
• Synchronization points (hipDeviceSynchronize)
• Stream usage (or lack thereof)
• Framework usage (PyTorch, JAX, TensorFlow)
• ROCTx markers

The output includes a profiling plan with the exact rocprofv3 command to run, with counters pre-selected based on what was found in the source.

---

9. Agentic TUI Workflow (The Star Feature)

The agentic TUI automates the full optimization loop: profile, analyze, AI-edit code, recompile, re-profile, compare. As of v0.2.0 this is the perfxpert-code command. By default it uses the patched opencode path (bundled in wheels; locally built first in source checkouts), and it wraps the same agent runtime the batch-mode analyze CLI uses.

perfxpert-code on the default patched opencode path, with perfxpert-mcp pre-wired and the TUI ready at startup.

# SKIP-SAMPLE — requires the bundled submodule-built opencode binary
perfxpert-code

Inside the TUI you describe your workload in natural language (e.g. "profile ./my_app and suggest optimizations"). The Root agent then drives the Analysis → Recommendation → Specialist hierarchy behind the scenes.

What happens:

1. Workload detection — identifies your binary type (HIP, Python ML, MPI) and selects optimal profiling flags
2. Profiling plan — shows the generated rocprofv3 command for your approval
3. Profile run — runs the profiler with real-time output streaming
4. Analysis — analyzes the trace, shows findings with AI-refined recommendations
5. Recommendations menu — address with AI, skip, or re-profile
6. AI edit — AI edits your source files using precise SEARCH/REPLACE blocks (see Gate Cascade doc for correctness guarantees)
7. Re-profile — re-profile with the optimized code and compare

AI Code Editing

When the agent applies an optimization, the LLM generates targeted code changes as SEARCH/REPLACE blocks — not full-file rewrites. This prevents truncation on large files and makes the diff easy to review:

-    for (int i = 0; i < CHUNKS; i++) {
-        HIP_CHECK(hipMemcpy(d_in + i * chunk, ...));
-    }
+    HIP_CHECK(hipMemcpyAsync(d_in, h_in.data(),
+                 N * sizeof(float),
+                 hipMemcpyHostToDevice, stream1));

Typical examples the TUI is designed to propose when the trace evidence matches:

• replace serialized hipMemcpy calls with hipMemcpyAsync on dedicated streams when the trace shows transfer-heavy idle gaps
• add __launch_bounds__ or reduce temporary live ranges when a hot kernel is occupancy-limited by VGPR pressure
• suggest LDS tiling when a memory-bound stencil or GEMM-like kernel reloads the same neighborhood repeatedly from global memory

If the edit causes compilation errors, the Correctness agent reverts the change automatically; see docs/architecture/gate-cascade.md for the full 5-gate correctness/regression contract.

---

10. MPI Multi-GPU Profiling (detailed)

The supported CLI workflow is still the explicit two-step flow: profile each rank with the launcher outside rocprofv3, then analyze the merged trace database.

# SKIP-SAMPLE — requires a built MPI application + openmpi
mpirun -n 8 rocprofv3 --sys-trace -d ./out -o results_%q{MPI_RANK} -- ./multi_gpu_demo
perfxpert analyze -i ./out/merged_processes.db --llm anthropic --source-dir ./src

Inside perfxpert-code you can still ask for the MPI profiling plan in natural language, but the batch CLI does not expose a --run launcher-wrapper flag today.

The supported MPI pattern is:

• MPI launcher outside rocprofv3, so each rank gets its own profiler instance
• %q{MPI_RANK} or %nid% in the output name to avoid SQLite collisions
• merged_processes.db as the input to perfxpert analyze after ranks are combined
• no --process-sync with OpenMPI, because LD_PRELOAD is stripped from child ranks

Note

: the canonical MPI rules also live in ../../perfxpert/_bundled/opencode_config/AGENTS.md, which is what the bundled TUI guidance follows.

---

11. LLM Providers

perfxpert analyze --help | grep -A 10 -- '--llm ' — the five primary providers plus the claude-code compatibility alias rendered straight from argparse's choices= list: anthropic,openai,ollama,private,opencode,claude-code.

All five primary LLM providers are selectable via --llm <name> on the CLI and via provider=<name> on perfxpert.api.agent_root(...) — the same registry backs both surfaces. claude-code is accepted on the CLI as a compatibility alias for the patched opencode backend used by perfxpert-code. LLM is optional; all analysis runs locally without internet when you omit --llm (or set PERFXPERT_AIRGAP=1).

--llm	Env vars	Purpose
anthropic	ANTHROPIC_API_KEY	Claude API (production default)
openai	OPENAI_API_KEY	OpenAI hosted API
ollama	PERFXPERT_LLM_LOCAL_URL (compat: OLLAMA_HOST, default http://localhost:11434)	Local Ollama daemon — fully offline once the model is pulled
private	PERFXPERT_LLM_PRIVATE_URL (compat: PRIVATE_LLM_ENDPOINT), PERFXPERT_LLM_PRIVATE_API_KEY or --llm-api-key, optional PERFXPERT_LLM_PRIVATE_MODEL, optional PERFXPERT_LLM_PRIVATE_HEADERS (JSON), optional PERFXPERT_LLM_PRIVATE_VERIFY_SSL=false	Any OpenAI-compatible endpoint (enterprise / self-hosted)
opencode	bundled binary; provider auth is handled by opencode	Bundled opencode CLI — subprocess wrapper; recursion-guarded inside perfxpert-code

# SKIP-SAMPLE — requires a real trace.db and an LLM credential
export ANTHROPIC_API_KEY="sk-ant-..."
perfxpert analyze -i trace.db --llm anthropic --llm-model claude-sonnet-4-5
# or:
export OPENAI_API_KEY="sk-..."
perfxpert analyze -i trace.db --llm openai --llm-model gpt-4o

# Private endpoint (any OpenAI-compatible server)
export PERFXPERT_LLM_PRIVATE_URL="https://llm-api.iexample.com/OpenAI"
export PERFXPERT_LLM_PRIVATE_MODEL="gpt-5.3-codex"
# Required by CLI preflight; use a real key or a gateway-accepted placeholder
# if authentication is entirely header-based.
export PERFXPERT_LLM_PRIVATE_API_KEY="..."
# Optional: extra HTTP headers as a JSON object (corp gateways, traceability)
export PERFXPERT_LLM_PRIVATE_HEADERS='{
  "Ocp-Apim-Subscription-Key": ".......",
  "user": ".....",
  "api-version": "preview"
}'
# Optional: bypass TLS verification for self-signed CAs (off by default)
export PERFXPERT_LLM_PRIVATE_VERIFY_SSL=false
perfxpert analyze -i trace.db --llm private

# Local Ollama (no network after model pull)
export PERFXPERT_LLM_LOCAL_URL="http://localhost:11434"
perfxpert analyze -i trace.db --llm ollama --llm-model llama3:70b

# Bundled opencode (no credential — used internally by perfxpert-code)
perfxpert analyze -i trace.db --llm opencode

Model selection ladder (first hit wins, resolved at session boot):

1. PERFXPERT_AGENTS_MODEL_<PROVIDER> — per-provider pin, e.g. PERFXPERT_AGENTS_MODEL_OPENAI=gpt-4o-mini
2. PERFXPERT_LLM_PRIVATE_MODEL — private-provider model pin
3. PERFXPERT_LLM_MODEL — cross-provider override
4. Built-in default (anthropic: claude-sonnet-4-20250514, openai: gpt-4o-mini)

Fallback chain (recommended for interactive use)

PERFXPERT_LLM_FALLBACK_CHAIN (new in cycle-2) cascades to the next provider when the primary raises RateLimitError. Survives most transient 429s without forcing a rerun:

# SKIP-SAMPLE — requires live credentials for each provider in the chain
export PERFXPERT_LLM_FALLBACK_CHAIN="openai,anthropic"
perfxpert analyze -i trace.db --llm openai

PERFXPERT_DISABLE_RATE_LIMIT_RETRY=1 short-circuits client-side retry so the fallback chain takes over on the first 429. See ../guides/agentic-mode.md for the full provider-resolution contract and the recursion-guard rules.

12. Interactive sessions via perfxpert-code

One-shot non-interactive:

# SKIP-SAMPLE — requires the patched opencode path + an LLM credential
perfxpert-code run -m anthropic/claude-haiku-4-5 "optimize ./app.cpp"

Fully interactive (drop into the TUI):

# SKIP-SAMPLE — requires the bundled submodule-built opencode binary
perfxpert-code

Tool-priority gate + lift semantics

The patched opencode path enforces a two-stage gate for every GPU-performance request:

1. Gate stage. The LLM MUST call perfxpert_intent_classify first, then perfxpert_workflow_next_step. Calls to bash, edit, write, read, glob, grep BEFORE those two are refused by the system-prompt discipline (patches 0010, 0012-0017; applied to all 8 prompt families so Anthropic / GPT / Gemini / Kimi / Trinity / Codex / Beast / default all get identical framing).
2. Lift stage. Once perfxpert_workflow_next_step returns a phase (profile / optimize / reprofile / analyze / build), the gate is LIFTED. The agent then MUST use bash to run the profiler (rocprofv3 / rocprof-compute), edit / write to apply the patch, and bash to rebuild. Refusing to execute is the wrong move — the workflow asked for it.

Session state is auto-saved. List / resume with perfxpert-code session list and perfxpert-code session <id> (pass-through to the underlying opencode session subcommand).

12.5 Embedding: the Python API

Everything the CLI does is reachable from Python via perfxpert.api. The 8 agent-hierarchy MCP tools map 1:1 to module functions (agent_root, agent_analysis, agent_recommendation, agent_correctness, agent_compute_specialist, agent_memory_specialist, agent_latency_specialist, agent_diff_specialist) so you can embed PerfXpert's analysis brain in your own notebooks, CI, or internal tooling.

from perfxpert import api; api.agent_root(database_path='trace.db', airgap=True, ...) — returns a plain dict with primary_bottleneck, narrative, hotspots, recommendations, etc. Same schema the CLI emits under --format json.

See python-api.md for the full surface.

13. Connecting other MCP clients

Any MCP-compatible client can consume the 56 READ-ONLY tools exposed by perfxpert-mcp (8 agent-hierarchy entry points + 47 classifier/knowledge tools + 1 trace_diff.diff_runs). Configuration snippets for Claude Desktop, Claude Code, Codex CLI, Gemini CLI, and generic stdio clients live in ../integration/mcp-server.md under §"Client integration". The default patched opencode path inside perfxpert-code wires perfxpert-mcp automatically — no client-side setup required.

Guide demo container MCP probe — a real initialize request runs through perfxpert-mcp, prints the discovered-tool banner, and confirms the negotiated protocol version.

14. Troubleshooting

perfxpert-code says the bundled opencode binary is missing. The default TUI path only uses the repo-pinned submodule build. Reinstall through the GitHub wrapper so the pinned submodule is populated, bun is available, and the bundled binary is verified before install exits. If you intentionally want a user-owned upstream opencode binary, run perfxpert-code opencode ... explicitly.

LLM quota exhausted (429 / insufficient_quota). Set PERFXPERT_LLM_FALLBACK_CHAIN to a comma-separated provider list, e.g. export PERFXPERT_LLM_FALLBACK_CHAIN="openai,anthropic". Combine with PERFXPERT_DISABLE_RATE_LIMIT_RETRY=1 to skip the client-side retry entirely and fall through on first 429.

ATT says the decoder is missing even though the Python package imports fine. PerfXpert gates ATT on the ROCprof Trace Decoder shared library that the runtime loads, not on whether rocprof_trace_decoder happens to be importable from the current Python environment. Install librocprof-trace-decoder.so under /opt/rocm/lib*, point PERFXPERT_ROCPROF_TRACE_DECODER_PATH at the library or its parent directory, or install the ROCm decoder package into a standard search path. See ../contributing/external-tools.md for the exact lookup order.

PMC counter collection fails with a per-block limit error. FETCH_SIZE and WRITE_SIZE each consume the full TCC budget — each MUST own its own --pmc pass, alone. Any other TCC-derived counter combined with either of those two will exceed the hardware limit. Consult perfxpert.counter_list_by_block / counter_lookup_info before emitting a counter set.

opencode binary not found on perfxpert doctor. Reinstall through the GitHub wrapper. Direct pip install also checks for missing OS prerequisites and exits with package-manager guidance when it cannot build the bundled perfxpert-code binary.

claude mcp add perfxpert perfxpert-mcp not finding the binary. The client's PATH is narrower than your login shell. Use the absolute path returned by which perfxpert-mcp when registering the server.

15. Extending PerfXpert

Want to add a new output format (say CSV for spreadsheet ingestion) or evolve the schema? See Adding an output format and Evolving the schema for the end-to-end contribution walkthroughs — both live under docs/contributing/ and are the canonical extension-point guides for the --format dispatcher and the three-layer schema stack (agent Pydantic / deterministic payload / public JSON).

16. Next steps

• ../architecture/agent-hierarchy.md — 8-agent tier map + fence slices
• ../architecture/gate-cascade.md — 5-gate correctness/regression middleware
• ../integration/mcp-server.md — full MCP tool list + client integration
• ../guides/agentic-mode.md — air-gap vs LLM + provider ladder + fallback chain
• ../guides/python-api.md — perfxpert.api (1:1 mirror of the 7 agent MCP tools) for embedding PerfXpert's analysis brain in your own tooling
